Overview

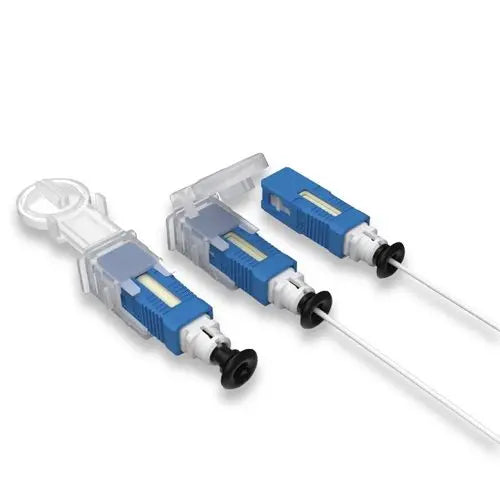

The Corning NPCP-SCU-SM-6 NPC+ is a field-installable single mode OS2 SC/UPC connector designed for efficient network terminations. By eliminating the need for epoxy or polishing, these connectors enable rapid deployment in the field, with installation achievable in under one minute per unit.
These connectors are engineered for robust performance in various operating environments, featuring a rear buffer clamp design that ensures excellent twist and transmission with applied load (TWAL) mechanical integrity. They are compatible with 250µm or 900µm tight or semi-tight buffer fibers, making them a versatile choice for data centers and enterprise fiber infrastructure.
Key Features
-
No-Polish Design
Eliminates the requirement for field polishing and epoxy, significantly reducing installation time. -
Rapid Installation
Allows for field termination in less than one minute per connector. -
High Performance
Offers typical insertion loss of 0.3 dB and maximum insertion loss of 0.6 dB. -
Stable Reflectance
Features a reflectance of < -35 dB to maintain signal integrity. -
Mechanical Reliability
Rear buffer clamp design improves TWAL performance under load. -
High Durability
Connector housing supports up to 500 rematings. -
Standard Compliance
Compliant with TIA/EIA-568-D.3, GR-1081, and GR-326-CORE mechanical and environmental requirements.
Applications
- Data center infrastructure
- Enterprise LAN/WAN networks
- Field restoration and repairs
- FTTx installations
Package Contents
- 6 x NPC+ SM SC/UPC Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | NPCP-SCU-SM-6 |
| Connector Type | SC/UPC |
| Fiber Mode | Single Mode (OS2) |
| Insertion Loss | 0.3 dB (typical) / 0.6 dB (max) |
| Reflectance | < -35 dB |
| Compatibility | 250µm / 900µm buffer fiber |
| Durability | 500 rematings |
| Standards | TIA/EIA-568-D.3, GR-1081, GR-326-CORE |
Frequently Asked Questions
Are these connectors reusable?
The connector allows up to 500 rematings.
Do I need a specific toolkit for installation?
Yes, the TKT-NPCP-FBC007 or TKT-NPCP-CI01 Fiber Termination Kits are required for installation (sold separately).
What fiber sizes are compatible?
These connectors are compatible with 250µm or 900µm tight or semi-tight buffer fibers.
Are these suitable for outdoor use?
The connectors comply with environmental requirements of TIA/EIA-568-D.3 and GR-326-CORE, suitable for standard telecommunication environments.
How many come in a package?
Each package contains 6 connectors.
