Overview
The Corning OptiSnap SC/UPC connectors are designed for high-performance field termination of single-mode 250µm fiber. These connectors utilize a precision-grade ceramic ferrule and a factory-polished UPC end-face to ensure consistent optical transmission in demanding network environments.
Engineered for speed and ease of use, these connectors allow for termination in under one minute. The mechanical design eliminates the need for field epoxy application, polishing films, or complex curing equipment, making them ideal for rapid deployment in data centers, enterprise networks, and fiber-to-the-x (FTTx) installations.
Key Features
-
Fast Termination
Field installation in under one minute to reduce labor time and increase site efficiency. -
Epoxy-Free Design
No messy adhesives or curing ovens required for faster, cleaner installations. -
Ceramic Ferrule
High-quality construction ensures stability and precise alignment of the fiber core. -
UPC Polish
Factory-polished end-face provides consistent return loss and signal integrity. -
Included Components
Complete kit includes connectors, shrouds, boots, and furcation tubes for a ready-to-deploy solution. -
Factory Tested Performance
Typical insertion loss of 0.2dB ensures minimal signal attenuation across the connection.
Applications
- Data Center Interconnects
- Enterprise Local Area Networks (LAN)
- Fiber-to-the-x (FTTx) deployments
- Telecommunications distribution networks

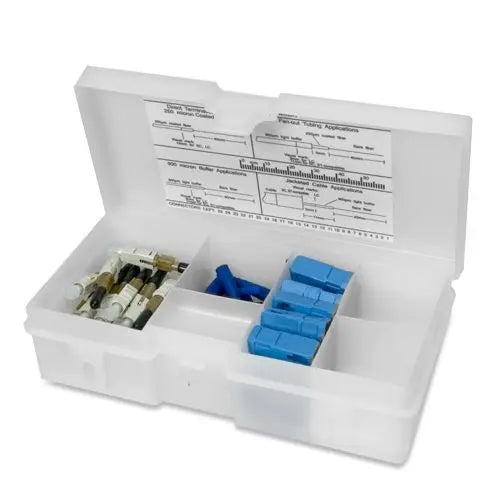

Package Contents
- 25 x OptiSnap SC/UPC Connectors
- 25 x Shrouds
- 25 x Boots (900µm)
- 25 x Furcation Tubes
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | OSNP-SCU-250-Z |
| Fiber Type | Single Mode |
| Fiber Size | 250µm |
| Connector Type | SC |
| Polish | UPC |
| Typical Insertion Loss | 0.2dB |
| Maximum Insertion Loss | 0.5dB |
| Typical Reflectance | -55dB |
| Housing Color | Blue |
| Quantity | 25 per pack |
Frequently Asked Questions
What tools are required for installation?
OptiSnap connectors require the appropriate OptiSnap installation tool kit for proper fiber cleaving and mechanical clamping.
Are these connectors reusable?
OptiSnap connectors are designed for a single permanent installation.
Can these be used with 900µm fiber?
This specific part number (OSNP-SCU-250-Z) is optimized for 250µm fiber. Ensure your fiber type matches the connector specifications.
Do I need a curing oven?
No, these are mechanical connectors and do not require epoxy, adhesives, or heating.
What is the typical insertion loss?
The typical insertion loss is 0.2dB, with a maximum rated loss of 0.5dB.
