Overview

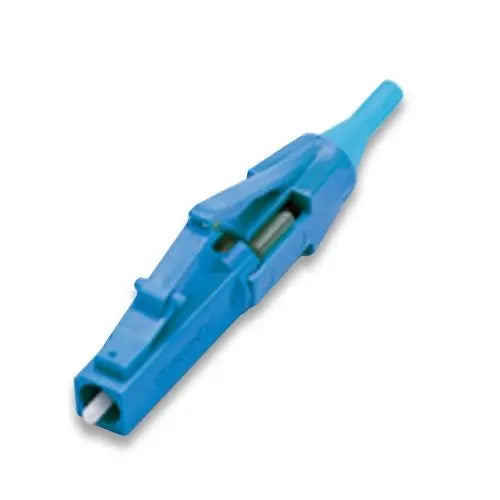

The Corning OSNP-LCU-900 OptiSnap LC connector is a field-installable fiber optic connector designed for single-mode 900µm fiber terminations. Engineered for rapid deployment, these connectors enable technicians to complete high-quality terminations in under one minute without the need for adhesives, polishing, or specialized curing equipment.
Featuring a precision ceramic ferrule and a factory-polished UPC end-face, the OptiSnap connector maintains consistent optical performance across diverse network environments. The connector utilizes a mechanical splice mechanism that ensures reliable connectivity for data center, enterprise, and outside plant fiber installations.
Key Features
-
Field-Installable Design
Eliminates the requirement for epoxy or field-polishing to reduce installation time and complexity. -
Ceramic Ferrule
Provides precise alignment and durability for repeated matings in high-density patches. -
UPC Polish
Ensures low insertion loss and optimized reflectance for high-performance signal transmission. -
Rapid Termination
Average installation time of less than one minute increases technician productivity. -
Blue Housing
Color-coded housing facilitates easy identification in high-density fiber management panels. -
Consumable-Free
Requires no additional chemicals or specialized tools beyond the standard preparation equipment.
Applications
- Data center fiber management
- Enterprise local area networks (LAN)
- FTTX installations
- Emergency restoration of fiber links
- General fiber repair and maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | OSNP-LCU-900 |
| Fiber Type | Single Mode |
| Connector Type | LC UPC |
| Fiber Compatibility | 900µm |
| Typical Insertion Loss | 0.2 dB |
| Max Insertion Loss | 0.5 dB |
| Typical Reflectance | -55 dB |
| Housing Color | Blue |
Frequently Asked Questions
Does this connector require epoxy?
No, the OptiSnap system is a mechanical splice connector that requires no epoxy or polishing.
What is the typical insertion loss for this connector?
The typical insertion loss is 0.2 dB, with a maximum specification of 0.5 dB.
Is this compatible with standard LC adapters?
Yes, it is designed to fit standard industry LC adapter interfaces.
What fiber size does this accommodate?
This specific model is designed for 900µm fiber.
What is the polish type?
This connector features a UPC (Ultra Physical Contact) polish.
