Overview

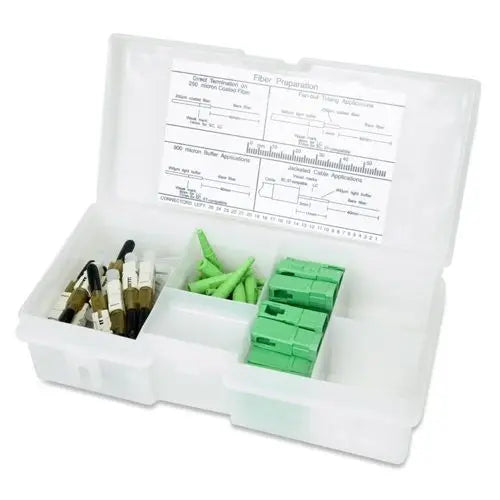

The Corning OSNP-SCA-250-Z OptiSnap SC APC connector is a high-performance, field-installable fiber optic connector designed for single-mode 250µm fiber terminations. Utilizing a ceramic ferrule and an APC (Angled Physical Contact) polished end-face, this connector is engineered to provide precise signal alignment and low back-reflection for demanding network environments.
These connectors facilitate rapid deployment in data centers, fiber-to-the-premise (FTTP) installations, and enterprise networks. Designed for efficiency, the mechanical design allows for termination in under one minute without the requirement for epoxy, polishing, or additional specialized consumables, significantly reducing installation time in the field.
Key Features
-
Field-Installable Design
Enables rapid termination in under one minute, significantly reducing field installation labor time. -
No-Epoxy/No-Polish
Eliminates the need for curing ovens, adhesives, or manual polishing, streamlining the assembly process. -
APC Polished End-Face
Minimizes back-reflection for enhanced signal integrity in high-bandwidth applications. -
Ceramic Ferrule
Provides durable and consistent physical contact for high-performance optical transmission. -
Factory Tested Performance
Each connector is verified to ensure standard-compliant insertion loss and reflectance metrics. -
Industry-Standard Housing
Features a distinct green housing to allow for quick identification of APC configuration.
Applications
- Fiber-to-the-Premise (FTTP)
- Enterprise LAN/WAN networks
- Data center cabling
- Fiber optic patch panels
- Field restoration and repairs
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | OSNP-SCA-250-Z |
| Connector Type | SC APC |
| Fiber Type | Single-mode |
| Fiber Diameter | 250µm |
| Typical Insertion Loss | 0.4 dB |
| Maximum Insertion Loss | 0.75 dB |
| Typical Reflectance | -60 dB |
| Package Quantity | 25 |
Frequently Asked Questions
Does this connector require epoxy?
No, the OptiSnap system is a no-epoxy, no-polish design that relies on mechanical termination.
What does the green housing signify?
The green housing identifies the connector as an APC (Angled Physical Contact) version.
What is the typical installation time?
Installations typically take less than one minute per connector.
Can these be used with 900µm fiber?
This specific part number is designed for 250µm fiber; ensure the correct fiber compatibility before installation.
What is the maximum insertion loss?
The maximum rated insertion loss for this connector is 0.75 dB.
