Overview

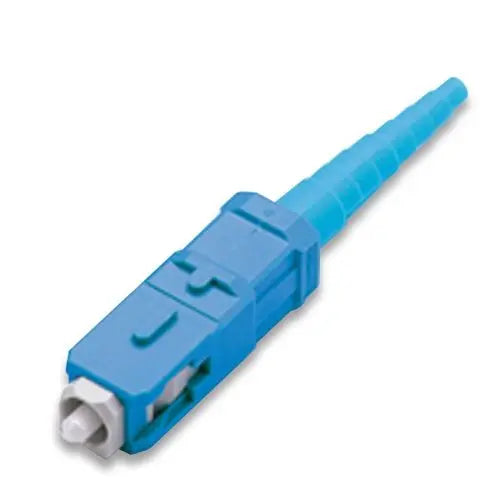

The Corning OSNP-SCU-250 OptiSnap SC UPC Connector is a field-installable single mode connector designed for high-performance fiber optic networks. Engineered for efficiency, this connector allows for termination of 250\\u00b5m fiber in under one minute, significantly reducing field installation time without the need for specialized epoxy, adhesives, or time-consuming polishing processes.
Built with a high-precision ceramic ferrule, this connector ensures stable optical alignment and durability in demanding data center or outside plant environments. Featuring a standard SC footprint with a UPC (Ultra Physical Contact) polish, it provides excellent signal integrity and is suitable for various single mode network applications.
Key Features
-
Fast Installation
Installable in under one minute, minimizing labor time and equipment downtime. -
Epoxy-Free Design
Eliminates the need for epoxy, polishing films, or heat ovens, simplifying field assembly. -
Ceramic Ferrule
Constructed with a ceramic ferrule to maintain precise optical alignment and mechanical stability. -
UPC Polish
Features a UPC end-face to minimize signal loss and support reliable network performance. -
Standard SC Interface
Compatible with standard SC adapters, facilitating seamless integration into existing infrastructure. -
Optimized for 250\\u00b5m Fiber
Specifically engineered to terminate 250\\u00b5m single mode fiber.
Applications
- Data Center Interconnects
- FTTH (Fiber to the Home) Installations
- Outside Plant Networks
- Enterprise LAN/WAN Networks
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | OSNP-SCU-250 |
| Fiber Type | Single Mode |
| Fiber Size | 250\\u00b5m |
| Connector Type | SC |
| Polish | UPC |
| Typical Insertion Loss | 0.2 dB |
| Max Insertion Loss | 0.5 dB |
| Typical Reflectance | -55 dB |
| Housing Color | Blue |
Frequently Asked Questions
Does this connector require epoxy?
No, the OptiSnap connector is an anaerobic, epoxy-free solution designed for fast field termination.
Can this be used on 900\\u00b5m fiber?
This specific part is designed for 250\\u00b5m fiber. Please check for the 900\\u00b5m variant for other fiber types.
Is the ferrule ceramic?
Yes, it utilizes a precision ceramic ferrule for high-quality optical performance.
What is the typical insertion loss?
The typical insertion loss is 0.2dB.
What polish does this connector use?
This connector features a UPC polish.
