Overview

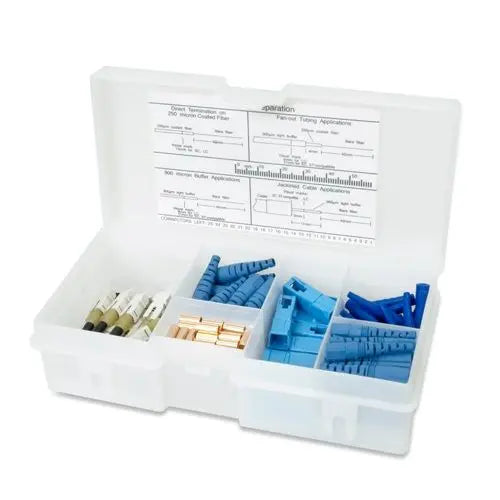

The Corning OptiSnap SC UPC Connector is a field-installable fiber optic connector engineered for high-performance single-mode applications. Designed specifically for 900µm fiber, this connector utilizes a precision ceramic ferrule to maintain optimal signal integrity in diverse fiber optic networks.
Engineered for rapid deployment, these connectors eliminate the need for field polishing, adhesives, or specialized curing ovens. This mechanical, no-epoxy installation process significantly reduces setup time, allowing technicians to perform high-quality terminations in under one minute per connector on average. The result is a robust, consistent connection suited for data centers and enterprise network environments.
Key Features
-
No-Epoxy Design
Eliminates the use of adhesives and curing time, allowing for immediate connector installation. -
Ceramic Ferrule
Ensures high-precision alignment and long-term durability of the optical path. -
Rapid Installation
Each connector installs in less than one minute on average, increasing field productivity. -
UPC Polish
Provides reliable signal transmission with low back-reflection for demanding network applications. -
Factory-Tested Performance
Typical insertion loss of 0.2dB ensures predictable optical budget calculations. -
Standardized Housing
Blue housing color identifies this unit as a standard single-mode SC/UPC connector.
Applications
- Data Center Interconnects
- Enterprise LAN/WAN Networks
- FTTx Installations
- Field Termination of 900µm Fiber
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model | OSNP-SCU-900-Z |
| Connector Type | SC UPC |
| Fiber Type | Single Mode |
| Compatible Fiber Size | 900µm |
| Insertion Loss (Typical) | 0.2 dB |
| Insertion Loss (Max) | 0.5 dB |
| Reflectance (Typical) | -55 dB |
| Package Quantity | 25 |
Frequently Asked Questions
Are these connectors reusable?
The OptiSnap system is designed for a single permanent installation.
Do I need a special tool for these connectors?
Installation requires a standard fiber cleaver and the specific OptiSnap installation tool kit to ensure proper seating of the fiber.
Can these be used with 250µm fiber?
These specific connectors (OSNP-SCU-900-Z) are optimized for 900µm buffered fiber.
What is the typical installation time?
On average, the connector can be fully installed in less than one minute.
What color is the housing?
The housing of these single-mode UPC connectors is blue.
