Overview

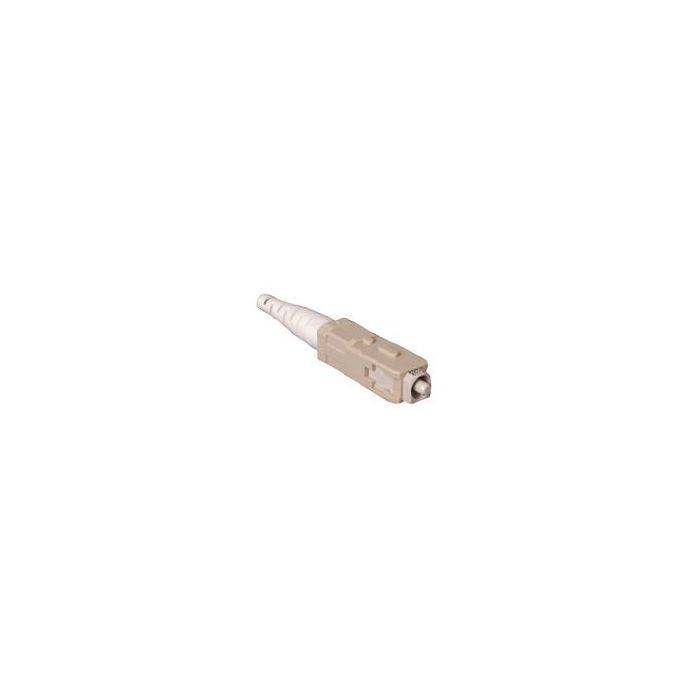

The Corning SC connector is a professional-grade fiber optic connector featuring a durable plastic body and a square front profile. Designed for reliable performance in multimode networks, this connector utilizes a high-quality zirconia ferrule to ensure precise alignment and low insertion loss.
This connector employs a heat-cure termination method, providing a robust and stable connection suitable for a wide range of installations. Its compact push-pull design allows for quick and efficient patching into rack or wall-mount enclosures, making it an ideal choice for telecommunications closets, premise wiring, and high-density fiber environments.
Key Features
-
Push-Pull Coupling
Enables rapid and secure insertion or removal of fiber optic cables. -
Zirconia Ferrule
Provides precise fiber alignment for consistent optical performance. -
Heat-Cure Termination
Ensures a long-lasting, durable connection for permanent installations. -
Duplex Capability
Connectors can be clipped together to create duplex configurations as needed. -
Square Front Profile
Standardized shape facilitates compatibility with various rack and wall-mount hardware. -
High-Density Ready
Compact design maximizes space in high-density telecommunications closets.
Applications
- Telecommunications closets
- Premise wiring
- High-density fiber networks
- Patch panels and rack-mount enclosures
- Wall-mount fiber cabinets
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Connector Type | SC |
| Fiber Mode | Multimode |
| Fiber Size | 62.5um |
| Termination Method | Heat Cure |
| Ferrule Material | Zirconia |
| Compatible Cable Diameter | 1.6mm - 2.0mm |
| Boot Color | White |
Frequently Asked Questions
What does the heat-cure process involve?
Heat-cure connectors use an epoxy adhesive that is set by heating in a specialized curing oven to provide a secure and permanent bond between the fiber and the connector.
Can these connectors be used in duplex applications?
Yes, these SC connectors are designed to be clipped together, allowing them to be easily converted into a duplex connection.
Are these compatible with high-density environments?
Yes, the compact square profile and push-pull design make these connectors well-suited for high-density rack and wall-mount installations.
What is the purpose of the zirconia ferrule?
The zirconia ferrule is a high-precision ceramic component that ensures the fiber ends are aligned with minimal tolerance for optimal light transmission.
What fiber size is this connector for?
This specific connector is optimized for 62.5um multimode fiber.
