Overview

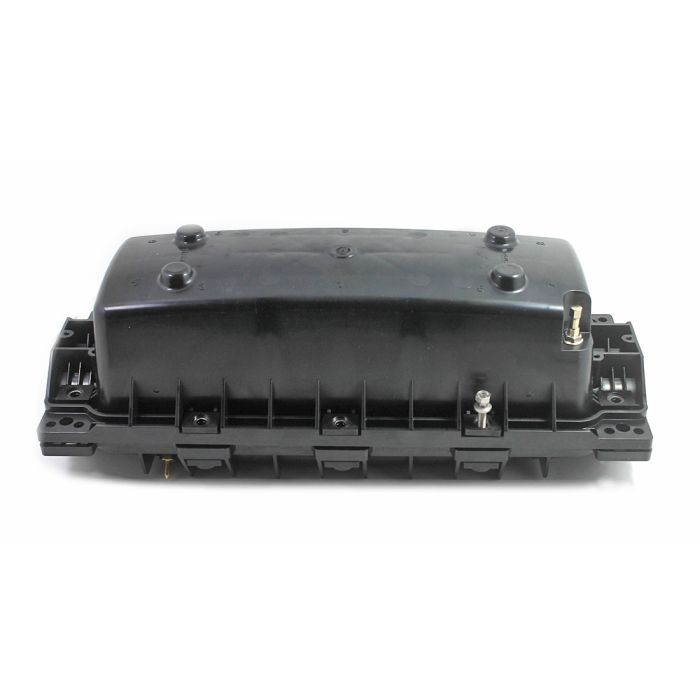

The Corning® Splice Case Standard is an robust, industry-standard enclosure designed to protect fiber optic splices in outside plant environments. Featuring a versatile design, it supports both inline and butt splice configurations, making it adaptable to a wide range of network architectures and deployment requirements.
This splice case is engineered to accommodate significant fiber counts, supporting up to 288 single fusion splices or up to 864 mass fusion splices. The enclosure is configured with 6 cable ports—consisting of 4 inline and 2 butt ports—to facilitate complex cable routing and distribution.
Key Features
-
High Splice Capacity
Supports up to 288 single fusion splices or 864 mass fusion splices for high-density network requirements. -
Versatile Configuration
Features both inline and butt port options to support diverse routing and installation needs. -
6 Cable Port Entry
Includes 4 inline and 2 butt ports for efficient cable management and system scalability. -
Rugged Construction
Built for demanding outside plant conditions, ensuring long-term protection of critical fiber connections. -
Compatible Splice Trays
Designed for use with 2522, 2523, and 2524FT series splice trays to maintain organized fiber management.
Applications
- Outside Plant (OSP) fiber optic networks
- Telecommunications distribution
- Fiber-to-the-x (FTTX) deployments
- Backbone network splicing
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Part Number | 2178LS |
| Dimensions (L x W x H) | 21.9" x 8.5" x 8.0" |
| Cable Ports | 6 (4 Inline / 2 Butt) |
| Configuration | Inline or Butt |
| Single Fusion Capacity | Up to 288 |
| Mass Fusion Capacity | Up to 864 |
| Compatible Trays | 2522, 2523, 2524FT |
Frequently Asked Questions
Is this enclosure suitable for underground use?
Yes, the 2178 series is designed for outside plant applications including underground, aerial, and buried deployments.
What type of splice trays does this case use?
It is compatible with 2522, 2523, and 2524FT series splice trays.
Can this be used for both inline and butt configurations?
Yes, the case is engineered to support both inline and butt cable configurations.
What is the maximum fiber count?
It supports up to 288 single fusion splices or 864 mass fusion splices.
How many cable ports are provided?
The unit provides 6 ports in total: 4 inline and 2 butt ports.
