Overview
The Corning Splice Closure Fiber (SCF) family is a robust solution engineered for secure fiber splicing in aerial, duct, and direct-buried environments. This sealed, canister-style closure is designed to provide long-term environmental protection for fiber optic networks, ensuring the integrity of connections in outdoor plant infrastructure.

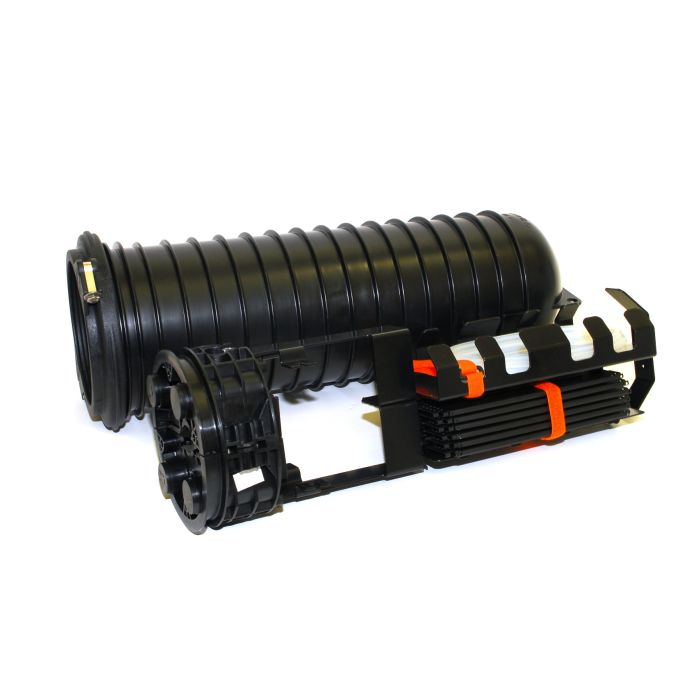

This 6-inch by 22-inch model is configured to support up to 72 single-fiber splices and includes an integrated slack basket for organized cable management. The system features split end caps, which allow for the convenient installation of uncut cables, and a modular design that facilitates efficient configuration in a variety of challenging deployment scenarios.
Key Features
-
Sealed Butt Design
Provides a highly effective environmental seal for long-term protection of sensitive fiber splices in outdoor settings. -
Versatile Mounting Options
Compatible with aerial, wall, pole, and direct-buried installation environments for maximum deployment flexibility. -
Uncut Cable Installation
Equipped with split end caps that simplify the process of installing mid-span or uncut cables during network builds. -
Integrated Slack Basket
Includes dedicated slack storage space to maintain proper bend radius and ensure organized cable management inside the closure. -
Modular Management System
Allows for flexible internal configurations, supporting various tray heights and storage requirements. -
Mechanical Port Sealing
Utilizes reliable mechanical seals for drop cable ports to enable quick installation and future network expansion.
Applications
- Aerial network installations
- Duct and conduit deployments
- Direct-buried fiber distribution
- Outdoor plant (OSP) infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Corning |
| Model Series | SCF (Splice Closure Fiber) |
| Part Number | SCF6C2201F |
| Closure Dimensions | 6-inch x 22-inch |
| Max Splice Capacity | 72 Single Fiber Splices |
| Closure Type | Sealed Butt Style |
| Cable Installation | Split end caps for uncut cables |
Frequently Asked Questions
Is this closure suitable for direct burial?
Yes, the SCF series is designed for burial applications as well as aerial and duct installations.
Does this closure support mid-span access?
Yes, the closure features split end caps specifically designed to accommodate the installation of uncut or mid-span cables.
What is the maximum splice capacity of this specific model?
This model is configured for 72 single-fiber splices.
What is included for cable organization?
This model includes a built-in slack basket for managed storage of excess fiber length.
Can I add more ports later?
The system is modular, and optional add-a-cable kits are available for the consolidation of multiport tails for up to 24 flat cables.
