Overview

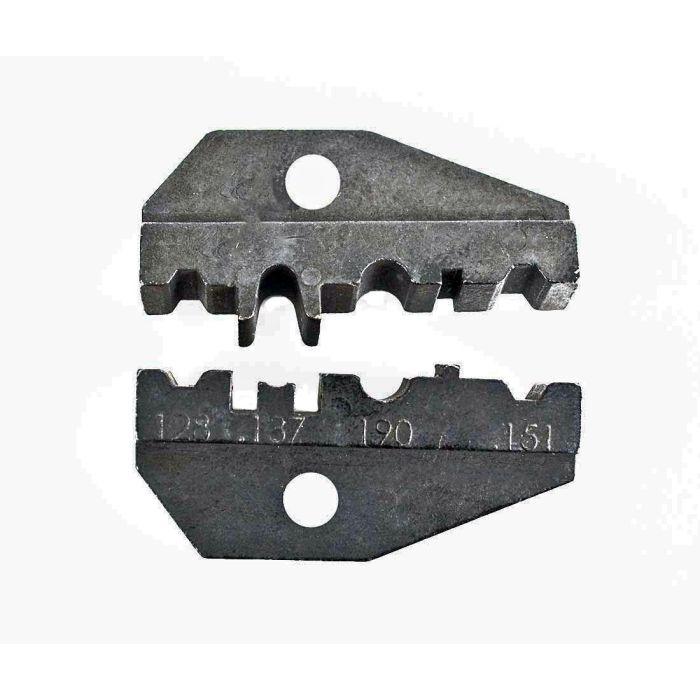

The Crimp Tool Die is a precision component designed for use with the F1-3227 crimp tool frame. It is essential for achieving consistent, high-quality fiber optic connector terminations that meet critical non-optical disconnect requirements and pull-strength specifications.
This die set is specifically engineered to handle connector assembly demands, ensuring that the mechanical integrity of the termination is maintained. It is intended for professional use in field or facility environments where reliable connector installation is required.
Key Features
-
Four Crimp Sizes
Features .128, .137, and .190 inch crimping cavities to accommodate various connector styles. -
Precision Engineering
Designed to meet strict non-optical disconnect requirements for fiber optic systems. -
High Pull Strength
Constructed to ensure terminations meet increased pull strength demands during operation. -
Direct Replacement
Specifically designed as a die-only component for the F1-3227 tool frame. -
Optimized Performance
Ensures maximum mechanical strength and consistent optical results. -
Compact Modular Design
Easily interchangeable for technicians requiring versatility in connector types.
Applications
- Fiber optic connector assembly
- Connector termination maintenance
- Field installation of fiber optic patch cords
- Data center cable assembly preparation
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F13227F |
| Crimp Sizes | .128, .137, .190 inches |
| Component Type | Crimp Die Only |
| Compatibility | F1-3227 Tool Frame |
Frequently Asked Questions
Is the tool frame included?
No, this is a die-only component. The complete tool frame is available under part number F13227CR.
What are the supported crimp sizes?
This die supports .128, .137, and .190 inch sizes.
What is the primary function of this die?
It is used for the precision crimping of fiber optic connectors to meet pull-strength and mechanical requirements.
Is this compatible with other tools?
This die is specifically designed for the F1-3227 series tools.
Does this ensure optical performance?
Yes, by providing a secure, high-strength mechanical termination, it helps maintain overall connector performance.
