Overview

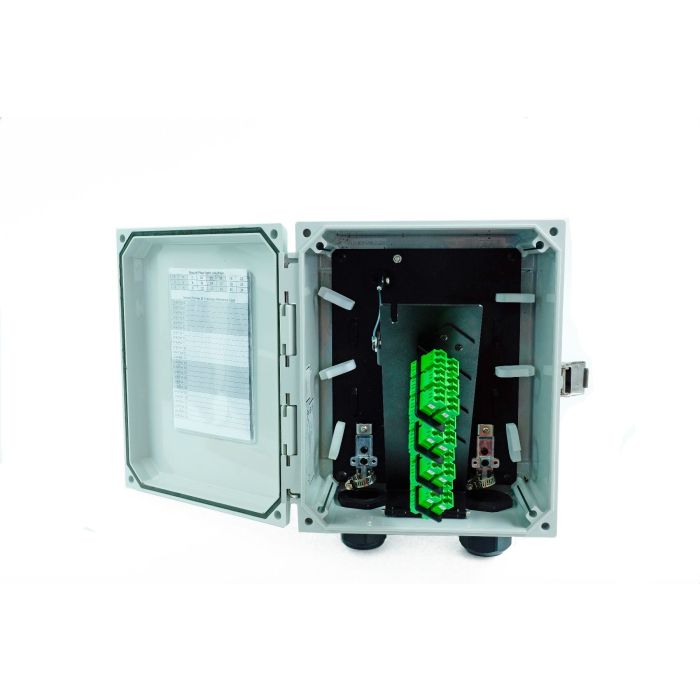

The 24-fiber Cross Connect Enclosure is a compact, robust solution designed for fiber management in demanding environments. Constructed from durable, NEMA 4X rated polycarbonate, this enclosure provides reliable protection against environmental elements, making it suitable for both indoor and outdoor installations.
Engineered for versatility, the unit features a tipping front panel that simplifies access to internal cable management rings and bridge stances. This design facilitates efficient cable dressing, slack management, and connector inspection. The angled adapter mounting helps maintain proper bend radius, ensuring signal integrity across high-density fiber connections.
Key Features
-
NEMA 4X Rated Protection
Features a poured polyurethane gasket to effectively seal out moisture and dust in harsh environments. -
Angled Adapter Mounting
Optimizes cable routing and prevents tight bend radii to maintain consistent signal performance. -
Tipping Front Panel
Provides easy technician access for cleaning, inspection, and cable management. -
Versatile Mounting Options
Includes integrated features for secure wall mounting or pole band attachment. -
High-Capacity Cable Entry
Equipped with glands for one trunk cable and up to five round drop cables, simplifying network deployment. -
Integrated Security
Side latch design includes a padlock hole to prevent unauthorized access.
Applications
- FTTH (Fiber to the Home)
- Remote Radio Head (RRH)
- Cross-connect distribution
Technical Specifications
| Specification | Value |
|---|---|
| Material | Polycarbonate |
| Rating | NEMA 4X, UL Listed |
| Dimensions | 10" x 8" x 4" |
| Fiber Capacity | Up to 48 fibers (LC duplex) / 24 fibers (SC simplex) |
| Trunk Cable Entry | Grommet optimized for 0.48" OD cable |
| Drop Cable Entry | Grommet for up to (5) 5.5-6.0mm round cables |
Frequently Asked Questions
What is the maximum fiber capacity of this enclosure?
The enclosure supports up to 48 fibers when using LC duplex adapters or 24 fibers when using SC simplex adapters.
Is this enclosure suitable for outdoor use?
Yes, it is NEMA 4X rated and features a poured polyurethane gasket for effective weather sealing.
How is the enclosure secured?
It features a side latch with a dedicated hole for a padlock to prevent unauthorized access.
Can it be mounted on a pole?
Yes, the enclosure includes mounting features that support pole mounting via bands.
What type of cable glands are used?
The unit includes a trunk cable entrance grommet and drop cable entrance grommets for standard round fiber cables.
