Overview
The Cross Connect Enclosure is a high-density, ruggedized fiber management solution designed for demanding environments. Constructed from durable, NEMA 4X rated polycarbonate and featuring a poured polyurethane gasket, this enclosure provides robust protection against weather elements, making it an ideal choice for outdoor installations and Remote Radio Head (RRH) applications.

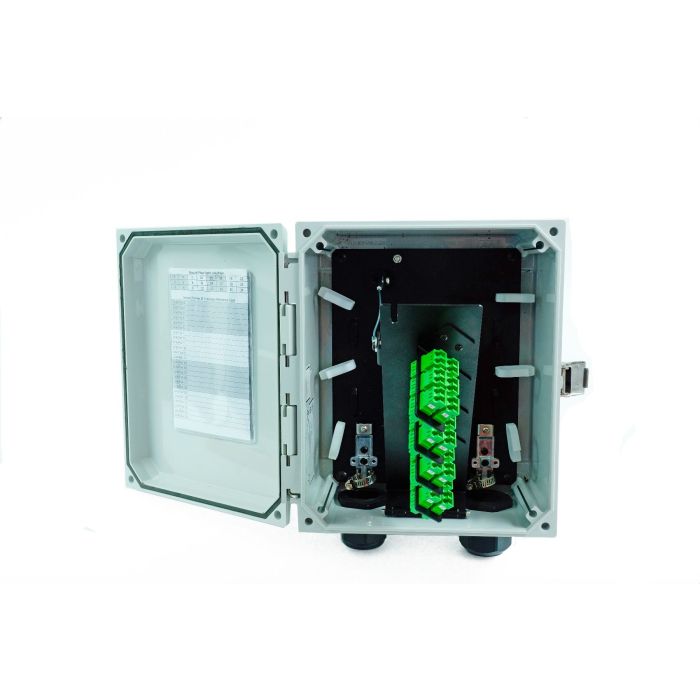

This enclosure supports the cross-connection of up to 48 fibers when configured with LC duplex adapters, or 24 fibers using the pre-installed SC/UPC simplex adapters. The internal design features an angled mounting panel that improves cable management by preventing tight bend radii, while the front panel tips forward to provide technicians with easy access to cable management rings and bridge stances for slack storage and dressing.
Key Features
-
NEMA 4X Rated Housing
Polycarbonate construction ensures high resistance to environmental factors for long-term outdoor operation. -
Angled Adapter Mounting
Adapters are angled to optimize cable management and maintain required fiber bend radii. -
Tilt-Out Front Panel
Provides direct access to internal cable management rings and bridge stances for efficient routing. -
Integrated Inspection Access
Allows for cleaning and video inspection of connector end-faces prior to mating within the enclosure. -
Flexible Cable Entry
Features a trunk cable grommet for 0.48-inch diameter cables and five ports for 5.5–6.0mm round drop cables. -
Secure Design
Side latch includes a built-in hole for padlocks to prevent unauthorized access.
Applications
- FTTH (Fiber to the Home) distribution
- Remote Radio Head (RRH) connectivity
- Outdoor fiber cross-connect points
- Wall-mount or pole-mount fiber termination
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Capacity (Simplex SC) | 24 Fibers |
| Fiber Capacity (Duplex LC) | 48 Fibers |
| Material | Polycarbonate |
| Enclosure Rating | NEMA 4X |
| Dimensions | 10 inch x 8 inch x 4 inch |
| Trunk Cable Entry | Grommet for 0.48 inch O.D. cable |
| Drop Cable Entry | Up to (5) 5.5-6.0mm round cables |
| Security | Padlock ready |
Frequently Asked Questions
Can this enclosure be mounted on a pole?
Yes, the enclosure supports optional pole mounting using bands.
Is the enclosure lockable?
Yes, the side latch features a hole specifically for a padlock to secure the unit.
What is the maximum fiber capacity?
The enclosure supports up to 48 fibers when utilizing LC duplex adapters.
Does it support different adapter types?
Yes, it supports LCAPC, LCUPC, SCAPC, and SCUPC adapters.
What kind of seal does the enclosure use?
It utilizes a poured-in polyurethane gasket for effective weather sealing.
