Overview

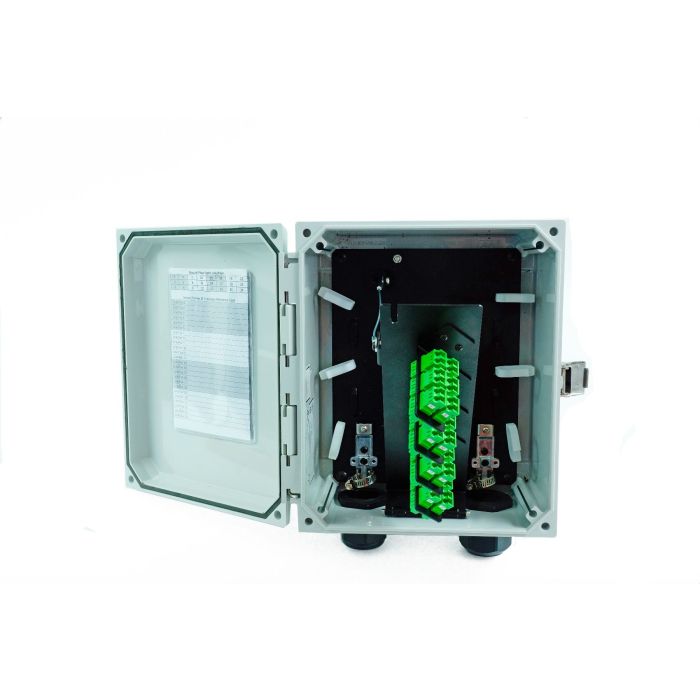

The 24-fiber cross connect enclosure is a robust, NEMA 4X-rated housing designed to provide secure fiber management in harsh environments. Engineered from durable polycarbonate, this unit serves as a versatile alternative to traditional steel enclosures, offering a poured polyurethane gasket to ensure reliable protection against weather elements.
Designed for FTTH or Remote Radio Head (RRH) applications, this enclosure features a hinged design and lockable side latch for secure access. It supports up to 48 fibers with LC duplex adapters or 24 fibers with SC simplex adapters, providing a flexible solution for high-density cross-connecting in outdoor or industrial settings.
Key Features
-
NEMA 4X Rated
Constructed to withstand harsh environmental conditions, providing protection against water and dust ingress. -
Polycarbonate Housing
Offers a durable, lightweight alternative to steel with enhanced resistance to environmental degradation. -
Angled Adapter Mounting
Optimizes cable management by maintaining proper bend radius for fiber patch cords. -
Tip-Forward Front Panel
Allows technicians easy access to cable management rings and slack storage for efficient maintenance. -
Integrated Poured Gasket
Ensures a continuous, airtight seal to protect internal fiber connections from moisture and contaminants. -
Flexible Cable Entry
Includes specialized grommets for one trunk cable and up to five round drop cables, accommodating diverse installation needs.
Applications
- Fiber to the Home (FTTH) distribution
- Remote Radio Head (RRH) connectivity
- Outdoor cross-connect cabinets
- Harsh environment fiber network termination
Technical Specifications
| Specification | Value |
|---|---|
| Material | Polycarbonate |
| Rating | NEMA 4X / UL Listed |
| Dimensions | 10" x 8" x 4" |
| Fiber Capacity | Up to 48 fibers (LC) or 24 fibers (SC) |
| Cable Entrance (Trunk) | Optimized for 0.48" OD cable |
| Cable Entrance (Drop) | Up to (5) 5.5-6.0mm round cables |
Frequently Asked Questions
What is the primary mounting method for this enclosure?
The enclosure supports wall mounting using integrated ears or pole mounting with optional bands.
Is the enclosure lockable?
Yes, the side latch features an integrated hole specifically for padlocks to prevent unauthorized access.
Does this unit accommodate factory-terminated connectors?
Yes, it supports factory-terminated connectors when used in conjunction with larger liquid-tight cable compression glands.
Can I use SC and LC adapters in this unit?
The enclosure supports LC duplex, SC simplex, as well as APC and UPC variants for both connector types.
What is the maximum fiber density?
It supports up to 48 fibers using LC duplex adapters or 24 fibers using SC simplex adapters.
