Overview

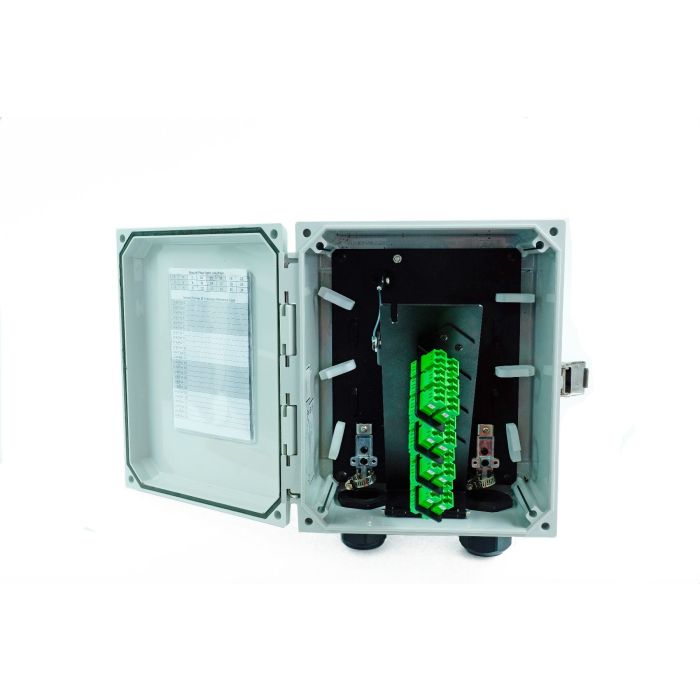

The Cross Connect Enclosure is a durable, weather-resistant solution engineered for high-density fiber management in FTTH and Remote Radio Head (RRH) environments. This enclosure is designed to protect sensitive fiber terminations while providing efficient routing and accessibility for field technicians.
Constructed from robust polycarbonate, the unit features a NEMA 4X rating and a poured-in polyurethane gasket to ensure reliable protection against environmental elements. Its versatile design supports wall or pole mounting, making it suitable for a wide range of outdoor installation requirements.
Key Features
-
NEMA 4X Rated Housing
The polycarbonate construction provides excellent weather and corrosion resistance for long-term outdoor deployment. -
Angled Adapter Mounting
Adapters are mounted at an angle to facilitate better cable management and ensure proper bend radius maintenance. -
Tilting Front Panel
The front panel tips forward for easy access to cable management rings and bridge stances, simplifying cable dressing and maintenance. -
Secure Access
Side latch features a built-in hole for padlocking, preventing unauthorized access to fiber connections. -
Flexible Cable Entry
Includes specialized grommets for one trunk cable and up to five round drop cables, ensuring a sealed entry point. -
High Fiber Density
Supports up to 48 fibers with LC duplex adapters or 24 fibers with SC simplex style adapters in a compact form factor.
Applications
- FTTH (Fiber to the Home)
- Remote Radio Head (RRH) sites
- Outdoor cross-connect cabinets
Technical Specifications
| Specification | Value |
|---|---|
| Material | Polycarbonate |
| Rating | NEMA 4X / UL Listed |
| Dimensions | 10" x 8" x 4" |
| Fiber Capacity | Up to 48 fibers (LC) or 24 fibers (SC) |
| Trunk Cable Entrance | Grommet optimized for 0.48" OD cable |
| Drop Cable Entrance | Grommet for up to (5) 5.5-6.0mm round cables |
Frequently Asked Questions
Can this enclosure be mounted on a pole?
Yes, it supports optional mounting features, including bands for pole mounting or ears for wall mounting.
Is the enclosure lockable?
Yes, the side latch includes a hole designed for use with a padlock.
What kind of adapters does this support?
It supports LCAPC, LCUPC, SCAPC, and SCUPC adapters.
Is the enclosure weather-tight?
Yes, it features a poured-in polyurethane gasket and partial molded hinges to protect against weather elements.
How many fibers can this manage?
The enclosure supports up to 48 fibers using LC duplex adapters or 24 fibers using SC simplex adapters.
