Overview
The Cross Connect Enclosure is a durable, NEMA 4X-rated polycarbonate solution designed for reliable fiber management in harsh environments. Serving as an alternative to steel enclosures, it features a poured-in polyurethane gasket to ensure superior protection against weather elements for FTTH and Remote Radio Head (RRH) applications.

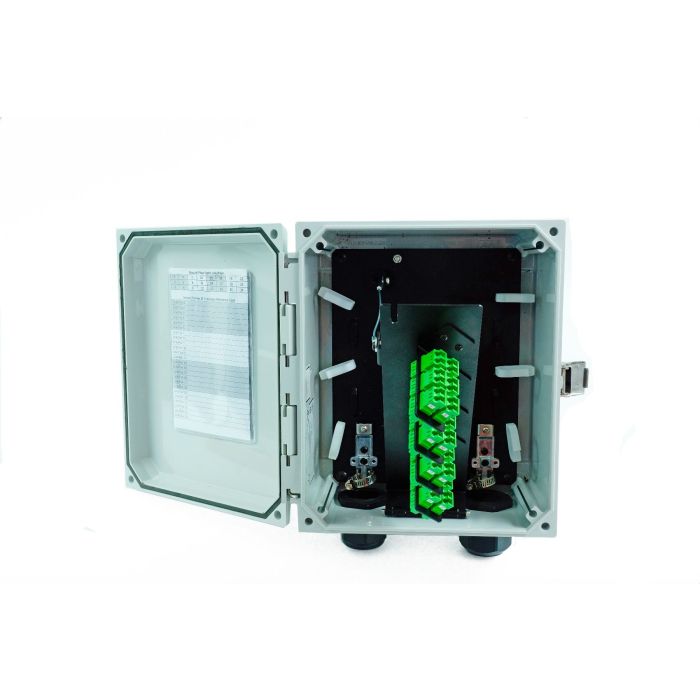

This enclosure is engineered for efficient cable management, supporting up to 48 fibers. It includes a hinged front panel that tips forward, providing technicians with easy access to internal cable management rings and bridge stances. This design facilitates secure slack management and allows for the inspection or cleaning of connectors prior to mating.
Downloads
Key Features
-
NEMA 4X Protection
Features a poured polyurethane gasket to seal out moisture and dust in harsh outdoor environments. -
Durable Polycarbonate Construction
Provides a high-strength, weather-resistant alternative to traditional steel enclosures. -
Flexible Access
The front panel tips forward for easy access to internal cable management, slack storage, and inspection. -
Optimized Cable Entries
Includes trunk cable grommets (0.48 inch capacity) and drop cable grommets for up to five 5.5-6.0mm round cables. -
High Fiber Density
Supports up to 48 fibers using LC duplex adapters or 24 fibers using simplex SC style adapters. -
Security Ready
Side latch design includes a dedicated hole for a padlock to restrict unauthorized access.
Applications
- FTTH (Fiber to the Home)
- Remote Radio Head (RRH) installations
- Outdoor cross-connect distribution
Technical Specifications
| Specification | Value |
|---|---|
| Material | Polycarbonate |
| Rating | NEMA 4X |
| Dimensions | 10" x 8" x 4" |
| Fiber Capacity | Up to 48 fibers |
| Trunk Cable Entrance | Optimized for 0.48" outer diameter cable |
| Drop Cable Entrance | Up to (5) 5.5-6.0mm round cables |
| Adapter Compatibility | LCAPC, LCUPC, SCAPC, SCUPC |
| Certifications | UL Listed |
Frequently Asked Questions
Is this enclosure lockable?
Yes, the side latch features a hole specifically designed to secure the unit with a padlock.
What types of adapters does this support?
The enclosure supports LC duplex adapters or simplex SC style adapters.
How many cables can it accommodate?
It features two entrance glands, accepting one trunk cable and up to five round drop cables (5.5-6.0mm).
What environment is this rated for?
It is NEMA 4X rated, making it suitable for harsh outdoor environments.
Can I mount this on a pole?
Yes, the enclosure supports mounting ears for walls or bands for pole mounting.
