Overview

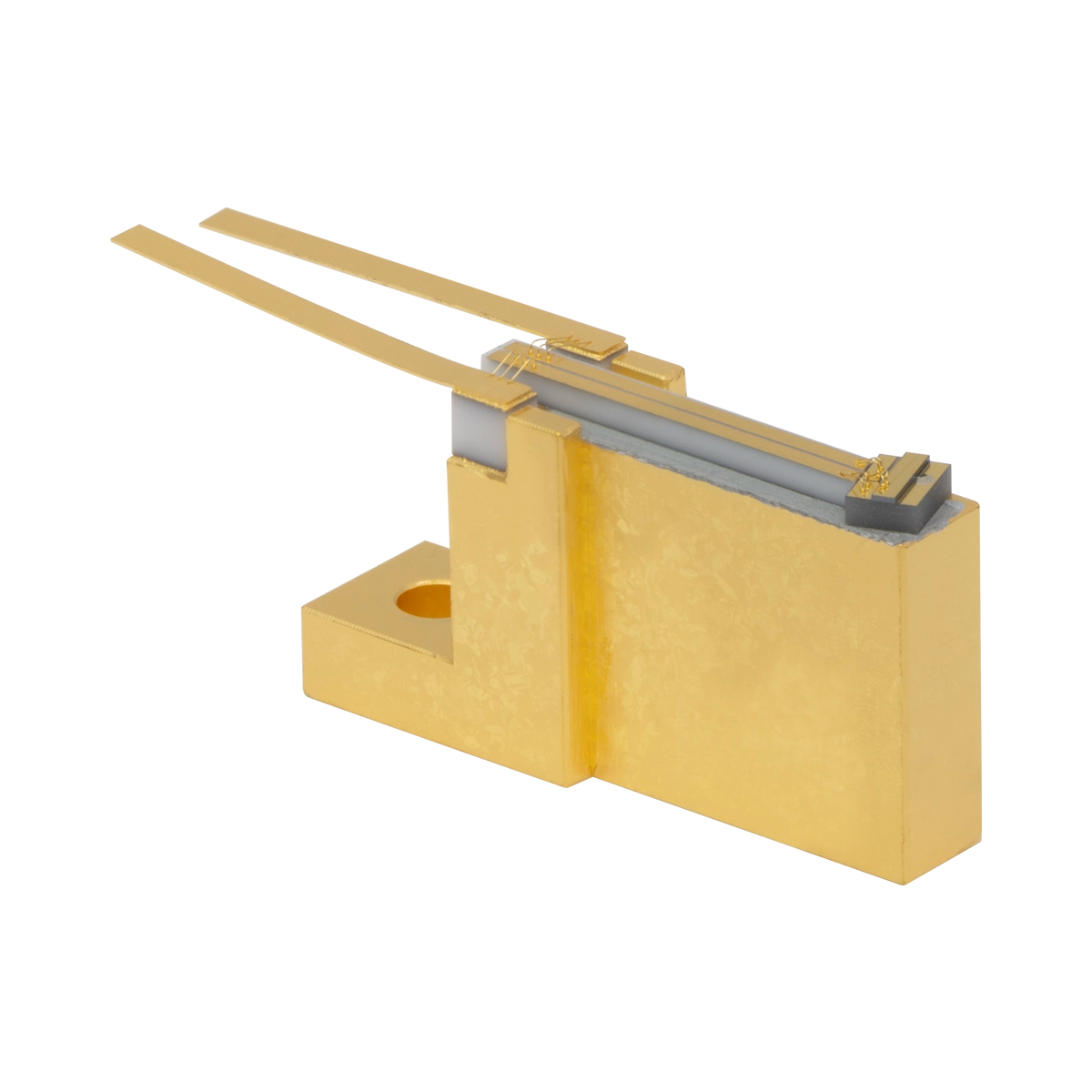

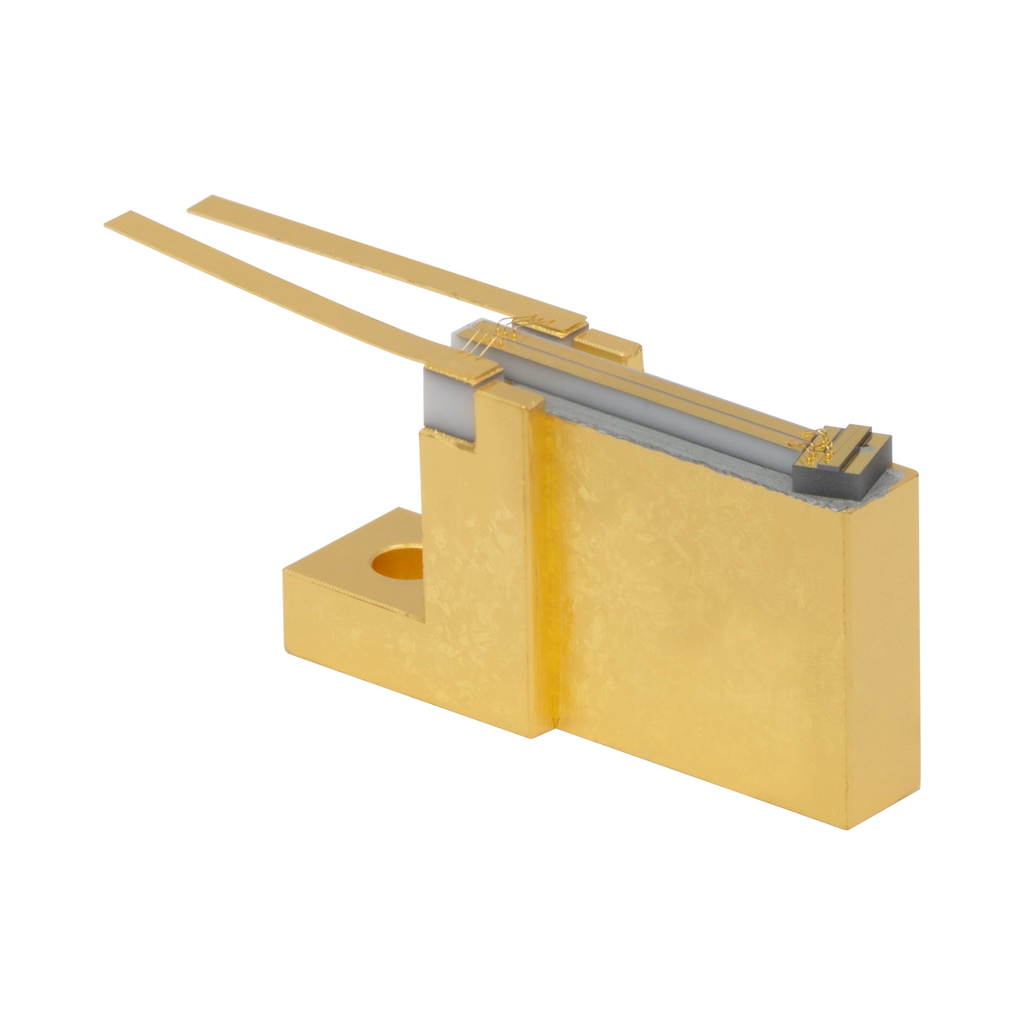

The SAF1030H is a GaAs Single Angle Facet (SAF) gain chip mounted on a submount and integrated with a heatsink. Designed for high-performance optical systems, this gain chip serves as the foundational active element for external cavity tunable lasers and other specialized photonic applications requiring precise wavelength control.
Engineered to mitigate back-reflections, the angle-facet design ensures effective operation in external cavity configurations. The integrated submount and heatsink assembly provides necessary thermal management for stable performance in laboratory and industrial integration environments.
Key Features
-
Single Angle Facet Design
Features a tilted facet to minimize internal reflections, enabling wider wavelength tuning ranges in external cavity setups. -
1030 nm Central Wavelength
Optimized for operation at the 1030 nm emission band, suitable for specific laser source development. -
GaAs Semiconductor Material
Utilizes Gallium Arsenide construction to provide efficient gain characteristics within the target spectral range. -
Integrated Heatsink
Includes a dedicated heatsink to facilitate consistent thermal dissipation during operation. -
Submount Integration
The chip is pre-mounted to a submount, simplifying the assembly and alignment process for integration into optical systems. -
RoHS & REACH Compliant
Manufactured in accordance with environmental standards for hazardous substance restriction and chemical safety.
Applications
- External Cavity Tunable Lasers
- Optical Fiber Sensing
- Spectroscopy Systems
- Photonic Research and Development
Technical Specifications
| Specification | Value |
|---|---|
| Model | SAF1030H |
| Central Wavelength | 1030 nm |
| Material | GaAs (Gallium Arsenide) |
| Mounting | Submount with Heatsink |
| Weight | 0.14 lbs |
| Compliance | RoHS, REACH |
| Warranty | One Year |
Frequently Asked Questions
What is the primary function of the angle facet design?
The angle facet is designed to prevent internal feedback, which allows the chip to act as a gain medium in an external cavity laser without parasitic lasing.
Does this gain chip come pre-mounted?
Yes, the SAF1030H is provided on a submount with an integrated heatsink for immediate mounting into compatible systems.
What is the operating wavelength of this device?
This device is centered at 1030 nm.
Is the unit compliant with environmental regulations?
Yes, the product is both RoHS and REACH compliant.
What is the warranty period?
One-year warranty on this product.
