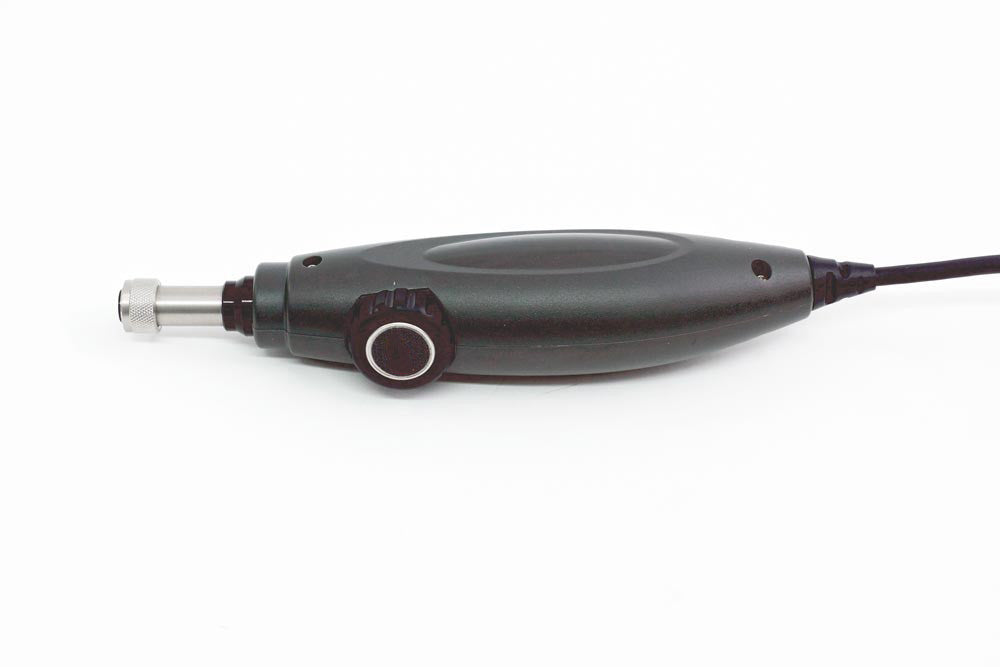

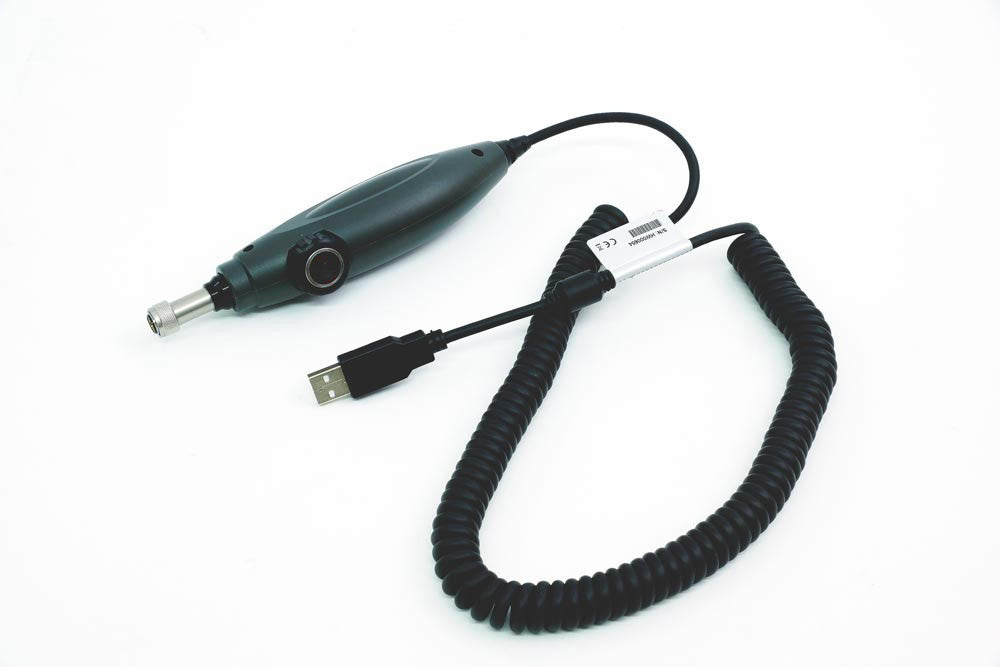

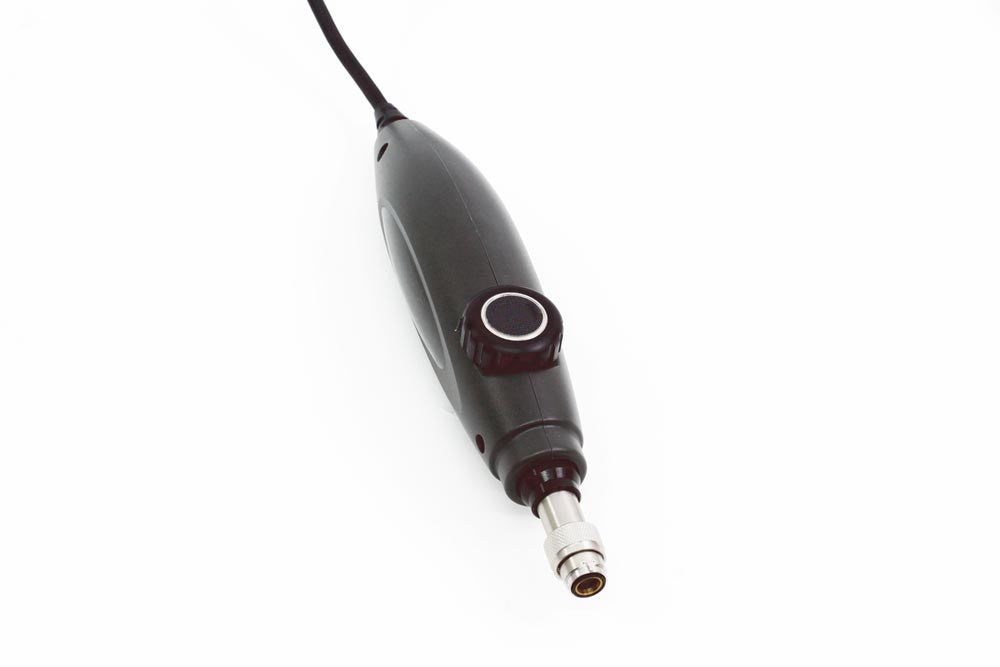

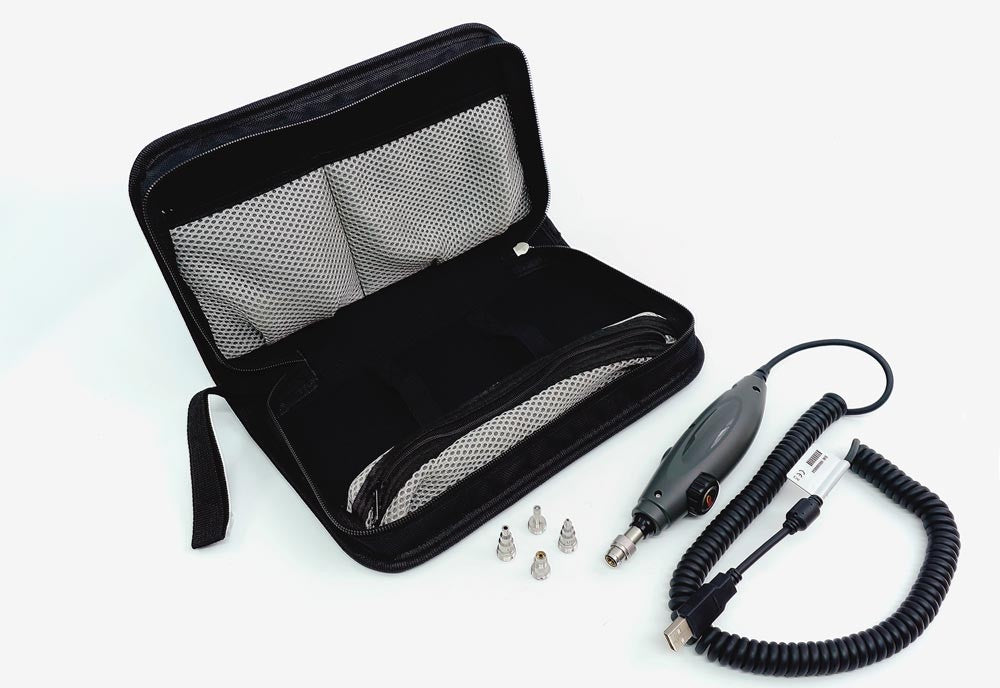

Digital USB Inspection Probe Kit
Safely inspect connector endfaces and inside bulkheads with our Fiber Optic Inspection Microscope.
Because the image is viewed on a screen rather than directly there is no chance of eyes being damaged by laser light if the fiber is live.
Images can be viewed on the screen of your choice. Part number F1CI1000 is the same microscope but a 3.5” TFT monitor is included with the kit to view the images.
Features
- Fast, easy focus with one hand operation
- 400x Magnification
- Resolution 0.5µm detectable
- Manual focus adjustment
SPECIFICATIONS
Dimensions: 175mm x 35 mm (Probe without cap)
Weight: 200 grams
Magnification: 400X
Field of view: ~ 425μm x 320μm
Optical resolution: ≤ 1.5 μm
Detectable resolution: 0.5 μm
Focus: Manual adjustment, 2mm max travel
Camera: 1/3” CMOS
Light source: Blue LED
Power Supply: PC USB2.0 port
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Supported Operating Systems: (DI-1000 Software) Windows XP®, Vista®, Windows 7®, Windows 8®, Windows 10® 32-bit and 64-bit processors
Additional ordering information
F1-PT2U25APCM: Universal 2.5mm probe tip for APC male connectors
F1-PT2FSAPCF: Tip for SC and FC APC female connectors
F1-PT2SCPCFL: Long Extended tip for SC PC female connectors
F1-PT2LCPCFL: Long Extended tip for LC PC female connectors
F1-PT2MTPAPCEXT: Extended tip for MTP/APC 12-Fiber connectors

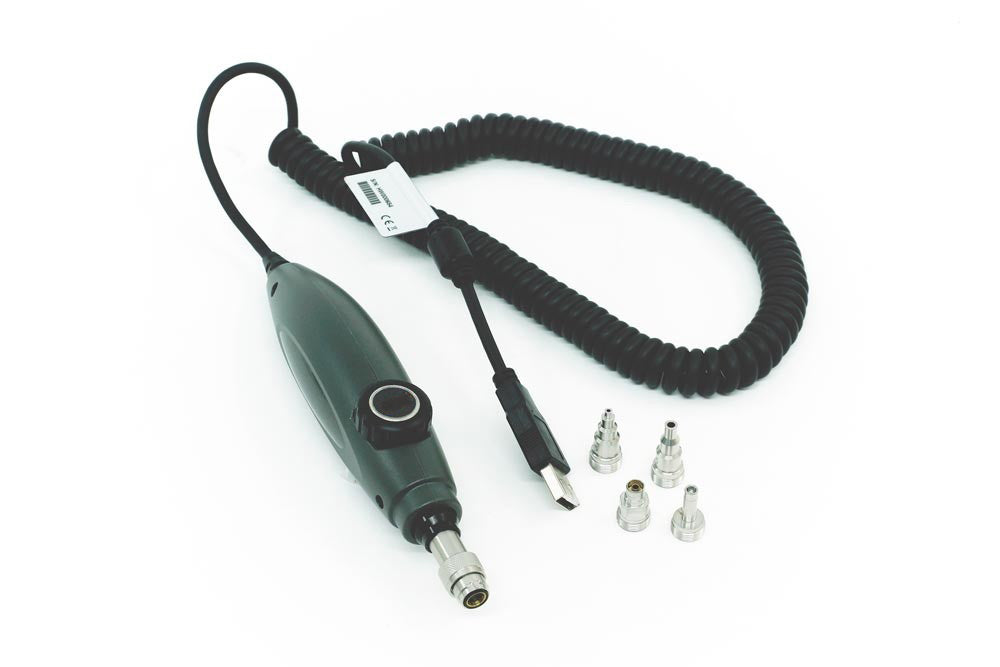

Tips Included
- F1-PT2FSPCF: Tip for SC & FC female PC type connector
- F1-PT2LCPCF: Tip for LC female PC type connectors
- F1-PT2U1.25PCM: Universal tip for 1.25mm male PC type connectors
- F1-PT2U2.5PCM: Universal tip for 2.5mm male PC type connectors
- Download Spec Sheet
