Overview

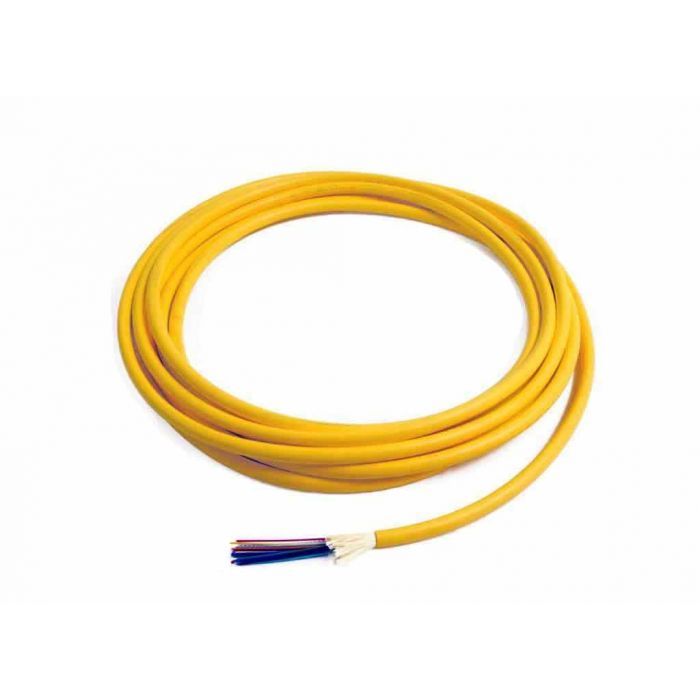

This 12-fiber distribution cable is designed for high-density networking environments, featuring Corning SMF-28 Ultra fiber for high-performance transmission. The cable is constructed with 900um tight buffered fibers, which simplifies the termination process by allowing for direct connector installation, eliminating the need for complex breakout kits.
This riser-rated cable is engineered for indoor installation within walls and conduits between floors. Its flexible design and tight-buffered construction make it an ideal choice for backbone or trunk cabling in data centers and enterprise LANs where rapid, reliable deployment is required.
Key Features
-
12-Fiber Configuration
Features twelve 900um tight buffered fibers for high-density signal distribution in a compact form factor. -
Corning SMF-28 Ultra Fiber
Utilizes industry-standard singlemode fiber for consistent optical performance and compatibility. -
Tight Buffered Construction
900um buffers allow for direct field termination of connectors, significantly reducing installation time. -
Riser-Rated Jacket
Constructed with a flame-retardant jacket suitable for vertical installations within building plenums or shafts. -
Simplified Splicing
The tight-buffered design supports easy fusion splicing directly to trunk cables or patch panels. -
Compact Diameter
Designed for efficient cable management and routing in tight conduit spaces.
Applications
- Data Center Backbone Cabling
- Enterprise LAN Trunking
- Vertical Riser Installations
- Network Patching and Interconnects
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Singlemode 9/125um |
| Fiber Technology | Corning SMF-28 Ultra |
| Jacket Rating | Riser |
| Jacket Color | Yellow |
| Buffer Type | 900um Tight Buffer |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this is a riser-rated cable designed specifically for indoor building environments.
Can I terminate connectors directly onto these fibers?
Yes, the 900um tight buffered design is specifically intended for direct field termination.
What is the fiber type?
This cable uses Corning SMF-28 Ultra singlemode fiber.
Is this cable armored?
No, this specific part number is the unarmored version.
How are the fibers grouped?
The 12 fibers are arranged in a distribution style, suitable for direct termination or splicing.
