Overview

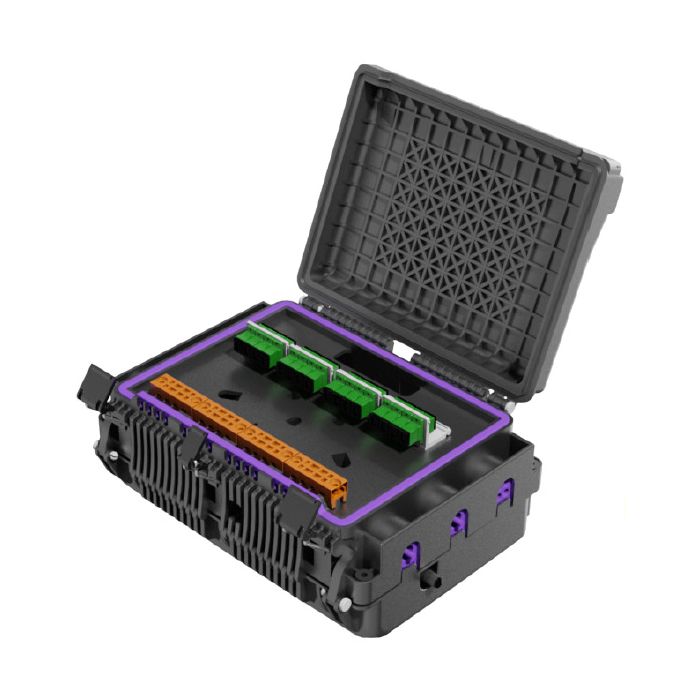

The DTE Aerial Strand Mount Enclosure is designed to provide high-level protection for fiber optic splice points and facilitate efficient distribution of drop fibers in outdoor environments. This enclosure is engineered as a plug-and-play solution, specifically configured to accommodate up to 16 pre-terminated fiber drop cables.
Constructed from chemical-resistant, anti-aging materials, the unit is built to withstand harsh external conditions. The interior supports flexible fiber management, with splice trays capable of accommodating PLC splitters and up to 24 individual splices, with a maximum capacity of six 24-count splice trays per enclosure.
Key Features
-
16 SC/APC Adapters
Pre-installed adapters facilitate quick connection of SC/APC terminated fiber drop cables. -
Plug-and-Play Design
Enclosure configuration allows for rapid installation and deployment in the field. -
High-Capacity Splice Management
Supports up to six 24-count splice trays, providing a total capacity of up to 144 splices. -
PLC Splitter Compatible
Internal mounting space allows for the integration of PLC splitters for passive optical networking. -
Chemical Resistant Construction
Outer housing is composed of durable, anti-aging materials for extended outdoor service life. -
Aerial Strand Mount
Designed for efficient installation on aerial plant strands.
Applications
- FTTH (Fiber to the Home) distribution
- Aerial fiber optic drop cable management
- Outside plant (OSP) fiber splicing
- Passive Optical Network (PON) termination points
Technical Specifications
| Specification | Value |
|---|---|
| Model | DTE Aerial Strand Mount |
| Part Number | Z1-DTE16SCA |
| Adapter Type | SC/APC |
| Adapter Count | 16 |
| Max Splice Tray Capacity | 6 Trays |
| Max Splices per Tray | 24 |
| Dimensions | 13.5"(H) x 8.75"(W) x 5.0"(D) |
| Construction Material | Chemical resistant, anti-aging |
Frequently Asked Questions
What is the maximum splice capacity?
The enclosure can hold up to six 24-count splice trays, for a total of 144 splices.
Are the SC/APC adapters included?
Yes, this model includes 16 SC/APC adapters pre-installed.
Is this enclosure suitable for outdoor use?
Yes, it is constructed from chemical-resistant, anti-aging materials designed for outdoor plant environments.
Can I use this for PLC splitters?
Yes, the internal splice trays are designed to accommodate PLC splitters.
How is this mounted?
This enclosure is designed for aerial strand mounting.
