Overview

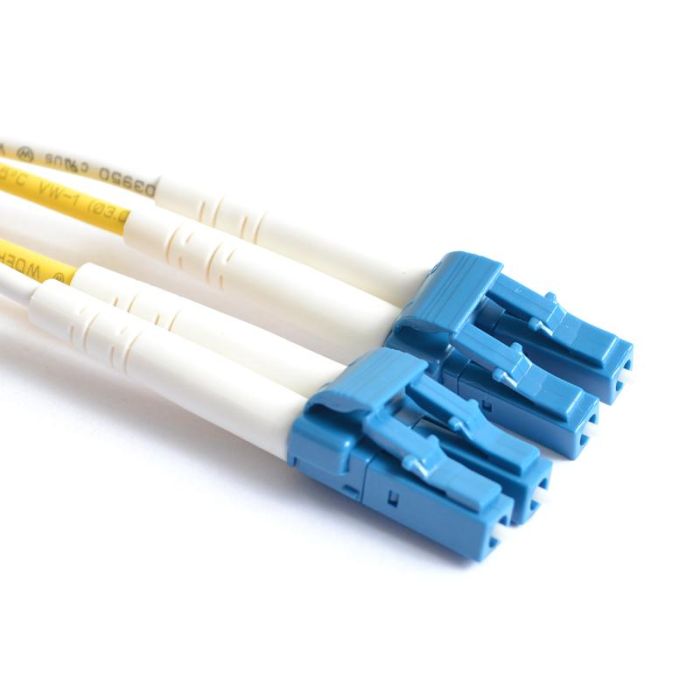

This duplex fiber optic patch cable is designed for high-performance singlemode network applications. It utilizes industry-standard LC to LC connectors with a UPC (Ultra Physical Contact) polish to ensure low signal loss and high return loss, providing a stable connection for critical data transmissions.
Constructed with 1.6mm outer diameter cabling and featuring genuine Corning SMF-28 Ultra fiber, this patch cord provides excellent bend-insensitivity. This makes it an ideal solution for high-density environments, such as data centers and telecommunications equipment, where tight cable routing and space management are required.
Key Features
-
Corning SMF-28 Ultra Fiber
Uses high-grade bend-insensitive fiber to maintain signal integrity in compact routing paths. -
UPC Polish
Optimizes physical contact between mated fiber cores for reduced back reflection. -
Duplex Configuration
Features a two-fiber design suitable for standard transmit and receive networking. -
1.6mm Cable Diameter
Small-profile design helps reduce congestion in cable trays and patch panels. -
Low Insertion Loss
Provides a typical loss of 0.2dB for efficient signal transmission. -
High Return Loss
Delivers -65dB back reflection performance, minimizing signal interference.
Applications
- Data Center Interconnects
- Telecommunications Equipment
- Enterprise Networking
- High-Density Patching Environments
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Type | Singlemode (SM) Corning SMF-28 Ultra |
| Connector A | LC UPC |
| Connector B | LC UPC |
| Polish | UPC (Ultra Physical Contact) |
| Configuration | Duplex |
| Cable Diameter | 1.6mm |
| Length | 1 Meter |
| Insertion Loss | 0.2dB (Typical) |
| Back Reflection | -65dB |
Frequently Asked Questions
What does UPC polish mean?
UPC stands for Ultra Physical Contact. It is a type of connector end-face polish that results in a domed surface, improving the physical contact between fiber cores and reducing back reflection compared to standard PC connectors.
Is this fiber bend-insensitive?
Yes, this cable is constructed using Corning SMF-28 Ultra fiber, which is specifically designed to be bend-insensitive, allowing it to withstand tighter bends with minimal signal loss.
What is the cable outer diameter?
The cable has an outer diameter of 1.6mm.
Is this cable singlemode or multimode?
This is a singlemode (SM) cable.
Can I use this in high-density fiber racks?
Yes, the 1.6mm duplex construction makes it well-suited for high-density environments where space is limited.
