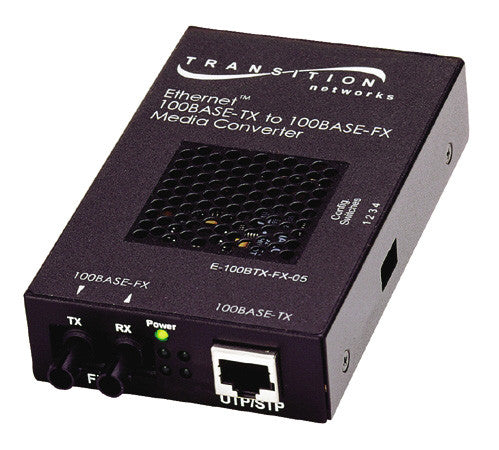

Fast Ethernet Standlone Coverters, 100Base-TX, RJ45 to 100Base-Fx, 1300nm, multimode, MT-RJ, 2 km
Move your mouse over image or click to enlarge

Fast Ethernet Standlone Coverters, 100Base-TX, RJ45 to 100Base-Fx, 1300nm, multimode, MT-RJ, 2 km

Transition Networks Part No.: E-100BTX-FX-05-MT

  • $ 583.85 or


Multimode
  • Min TX PWR: -19.0 dBm
  • Max TX PWR: -14.0 dBm
  • RX Sensitivity: -33.5 dBm
  • Max In PWR: -14.0 dBm
  • Link Budget:14.50 dB
Switches
  • SW1: Auto-Negotiation On/Off
  • SW2: Pause TX On/Off
  • SW3: Link Pass Through On/Off
  • SW4: Far End Fault On/Off

Jumper

  • J3: AutoCross enable/disable

Dimensions

  • Width: 3.0" [76 mm]
  • Depth: 4.7" [119 mm]
  • Height: 1.0" [25 mm]

Power

  • External AC/DC required: 12 VDC, 0.5 A, unregulated, standard

Environment

  • 0 5°C, 5% 95% humidity non-condensing, 0 10,000 ft. altitude

Shipping Weight

  • 2 lbs. [0.90 kg]
