E-13-003 22mm CA, 35mm FL, Mounted MgF2 Coated Achromatic Doublet Lens

Fosco Connect Part No.: E-13003

  • $ 243.00 or

E-13003 22mm CA, 35mm FL, Mounted MgF2 Coated Achromatic Doublet Lens

Product MGF2 Coating Curve

Product Drawing

Effective Focal Length EFL (mm): 35.00
f/#: 1.4
Numerical Aperture NA: 0.36
Coating: MgF2 (400-700nm)
Type: Achromatic Lens
Wavelength Range (nm): 400 - 700
Back Focal Length BFL from Housing (mm): 22.19
Bevel: Protective bevel as needed
Clear Aperture CA (mm): 22.0
Coating Specification: Ravg ≤1.75% @ 400 - 700nm
Edge Thickness ET (mm): 9.47
Focal Length Specification Wavelength (nm): 587.6
Focal Length Tolerance (%): ±2
Radius R1 (mm): 24.47
Radius R2 (mm): -16.49
Radius R3 (mm): -131.65
Surface Quality: 40-20
Lens Included: #E-32319
Mount Included: #E-56354
Mount Diameter (mm): 30.0
Extension Length (mm): 24.2
Total Length (mm): 28.2
Thread Type: C-Mount
Power (P-V) @ 632.8nm: 1.5λ
Irregularity (P-V) @ 632.8nm: λ/4

Product Family Description

  • Pre-mounted in Engraved C-Mount Housings
  • Simplify Integration into Optical Systems
  • Less than 1.75% Reflectance per Surface @ 400 - 700nm

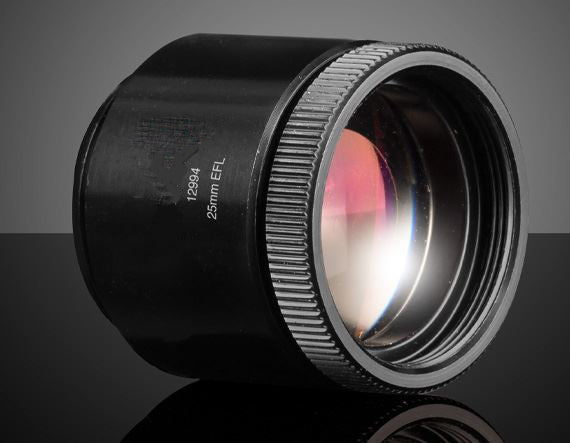

TECHSPEC® Mounted MgF2 Coated Achromatic Lenses feature our TECHSPEC MGF2 Coated Achromatic Lenses pre-mounted in C-Mount housings to simplify their integration into optical systems. Designed for the visible spectrum, these lenses are coated with a single layer MgF2 anti-reflection coating to increase light transmission. Each C-Mount housing is laser engraved with the stock number and focal length for easy identification. TECHSPEC Mounted MgF2 Coated Achromatic Lenses are ideal for C-Mount optical systems that require on-axis spherical and chromatic aberrations to be eliminated.
