E-14-477 18mm Dia. x 35mm FL, YAG-BBAR Coated, Achromatic Doublet Lens

Fosco Connect Part No.: E-15477

  • $ 150.00 or



E-14477 18mm Dia. x 35mm FL, YAG-BBAR Coated, Achromatic Doublet Lens

Product Drawing

Diameter (mm): 18.00 +0.0/-0.025
Effective Focal Length EFL (mm): 35.00
Focal Length Tolerance (%): ±1
Back Focal Length BFL (mm): 30.72
Focal Length Specification Wavelength (nm): 587.6
Clear Aperture CA (mm): 17.00
Centering (arcmin): <1
Center Thickness CT 1 (mm): 6.01
Center Thickness CT 2 (mm): 1.60
Center Thickness Tolerance (mm): ±0.2
Radius R1 (mm): 24.26
Radius R2 (mm): -16.23
Radius R3 (mm): -152.99
Edge Thickness ET (mm): 5.61
Substrate:
Surface Quality: 40-20
f/#: 1.94
Numerical Aperture NA: 0.26
Coating: YAG-BBAR (500-1100nm)
Coating Specification:
Rabs <0.25% @ 532nm
Rabs <0.25% @ 1064nm
Ravg <1.0% @ 500 - 1100nm
Power (P-V) @ 632.8nm: 1.5λ
Irregularity (P-V) @ 632.8nm: λ/4
Bevel: Protective bevel as needed
Type: Achromatic Lens
Wavelength Range (nm): 500 - 1100

Product Family Description

  • Optimized for <0.25% Absolute Reflectivity at 532nm and 1064nm
  • Excellent Broadband Transmission from 500 - 1100nm
  • Low Cost Alternative to Air-Spaced Focusing Doublets

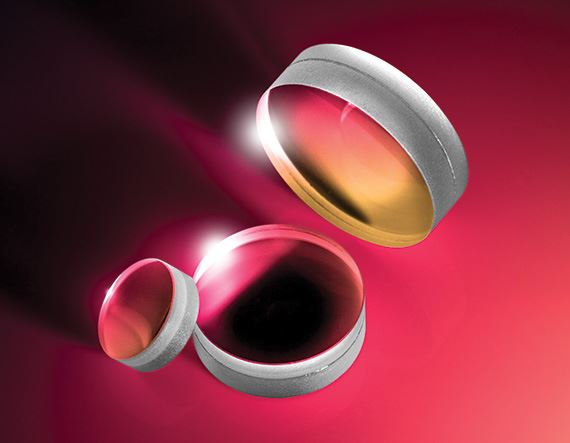

TECHSPEC® YAG-BBAR Coated Achromatic Lenses consist of two optical components cemented together to form a doublet that is ideal for correcting on-axis spherical and chromatic aberrations. These achromats feature a broadband anti-reflective coating with superior transmission from 500 - 1100nm, and are optimized for less than 0.25% absolute reflectivity at 532 and 1064nm. Our TECHSPEC YAG-BBAR Coated Achromatic Lenses are specifically designed to minimize the spot size for polychromatic illumination within the recommended usable wavelength range, but may also be used for focusing Nd:YAG lasers, especially those with an alignment beam.
