E-42-817 63.5mm Dia x 486.3mm FL Achromatic Lens

Fosco Connect Part No.: E-42817

  • $ 528.00 or

E-42817 63.5mm Dia x 486.3mm FL Achromatic Lens

Product MGF2 Coating Curve

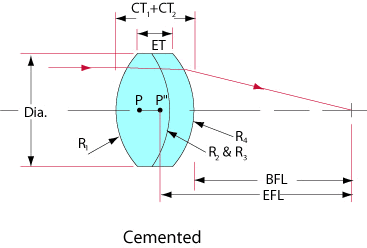

Product Drawing

Diameter (mm): 63.50 +0.00/-0.08
Effective Focal Length EFL (mm): 486.30
Focal Length Tolerance (%): ±1
Back Focal Length BFL (mm): 476.42
Focal Length Specification Wavelength (nm): 587.6
Clear Aperture CA (mm): 60.00
Centering (arcmin): 5.00
Center Thickness CT 1 (mm): 11.43
Center Thickness CT 2 (mm): 10.16
Center Thickness Tolerance (mm): ±0.38
Radius R1 (mm): 290.86
Radius R2 (mm): -197.87
Radius R3 (mm): -197.87
Radius R4 (mm): -680.72
Edge Thickness ET (mm): 19.11
N-BK7 / N-SF2
Surface Quality: 60-40
f/#: 7.7
Numerical Aperture NA: 0.06
Coating: MgF2 (400-700nm)
Coating Specification: Ravg ≤1.75% @ 400 - 700nm
Construction: Unmounted, Cemented
Bevel: Protective bevel as needed
Type: Achromatic Lens
Wavelength Range (nm): 400 - 700

Product Family Description

  • Offered in Cemented or Air-Spaced Designs
  • Mounted Versions Available for Easy Integration
  • Feature MgF2 Anti-Reflection Coating

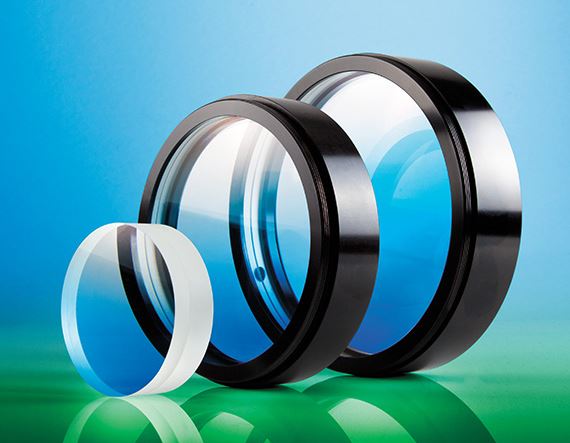

TECHSPEC® Large Precision Achromatic Lenses offer near-diffraction limited performance across the designated wavelength range. These color-corrected achromatic lenses feature long focal lengths and are available in either cemented or air-spaced designs. Mounted versions feature a male mounting thread for easy integration into optical systems. Adhesive foil spacers and mounting instructions are included for unmounted, air-spaced achromatic lenses.
