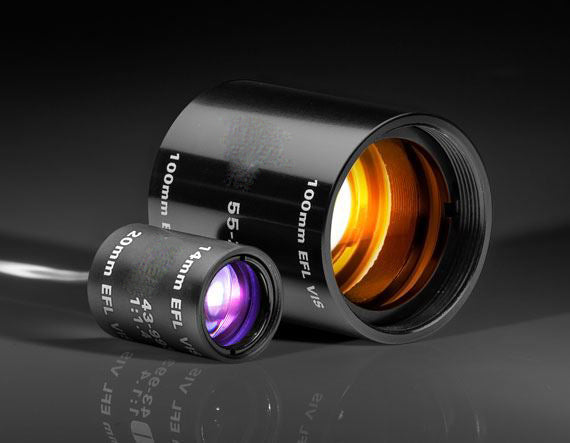

E-43-993 1:1.43 with 14mm and 20mm EFL Achromats, 15mm Achromatic Pair

Fosco Connect Part No.: E-43993

$ 298.00 or

E-43993 1:1.43 with 14mm and 20mm EFL Achromats, 15mm Achromatic Pair

Product MFG2 Coating Curve

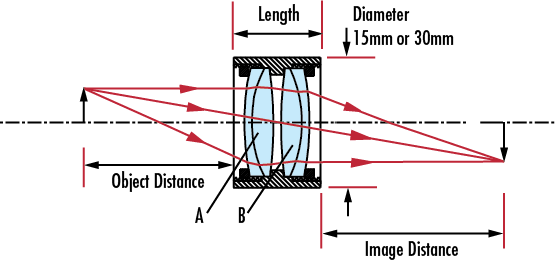

Product Drawing

Clear Aperture CA (mm): 9.5

Center Air Spacing (mm): 1.33

N-BAF10 / N-SF5 / S-BAH11 / N-SF10

Surface Quality: 40-20

Working f/#: f/1.98

Coating: MgF₂ (400-700nm)

Coating Specification: R_avg ≤1.75% @ 400 - 700nm

Effective Focal Length EFL A (mm): 14.00

Effective Focal Length EFL B (mm): 20.00

Housing Diameter (mm): 15 +0.0/-0.10

Housing Length (mm): 21 ±0.2

Lens Edge Spacing at Mount (mm): 4

Magnification: 1:1.43

Object Distance (mm): 7.11

Image Distance (mm): 26.7

Construction: Achromat Pair in Anodized Aluminum Housing

Type: Relay Lens

Wavelength Range (nm): 400 - 700

Product Family Description

15mm and 30mm Diameter Options
AR Coated Lenses
Mounted Achromatic Pairs Kits Available

Our 15.0mm and 30.0mm Mounted Achromatic Pairs combine our popular TECHSPEC® achromats into common configurations used for relay and projection applications. Packaged in a slim-line aluminum housing, each pair is ready for integration into a host of OEM applications, eliminating the need to handle loose optics. Our 15.0mm pairs can be coupled into our C-mount components using our Helicoid Barrel Accessory. Each lens has also been oriented for optimum system performance. All lenses AR coated. Lower f/# pairs may not be ideal for imaging applications depending on the performance requirements. Cylinder lenses can be incorporated into empty barrels in order to generate lines or sheets of light.
