E-46-006 1:3.3 with 30mm and 100mm EFL Achromats, 30mm Achromatic Pair

Fosco Connect Part No.: E-46006

E-46006 1:3.3 with 30mm and 100mm EFL Achromats, 30mm Achromatic Pair

Clear Aperture CA (mm): 22.0

Center Air Spacing (mm): 3.09

N-BAF10 / N-SF10 / N-BK7 / N-SF5

Surface Quality: 40-20

Working f/#: f/4.09

Coating: MgF₂ (400-700nm)

Coating Specification: R_avg ≤1.75% @ 400 - 700nm

Effective Focal Length EFL A (mm): 30.00

Effective Focal Length EFL B (mm): 100.00

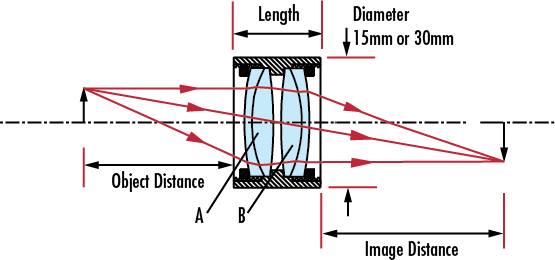

Housing Diameter (mm): 30 +0.0/-0.10

Housing Length (mm): 34 ±0.2

Lens Edge Spacing at Mount (mm): 8

Magnification: 1:3.33

Object Distance (mm): 19.19

Image Distance (mm): 90.13

Construction: Achromat Pair in Anodized Aluminum Housing

Type: Relay Lens

Wavelength Range (nm): 400 - 700
