E-48-615 25.0mm Diameter VIS 0° Coated, Achromatic Lens Kit

Fosco Connect Part No.: E-48615

  • $ 1,650.00 or

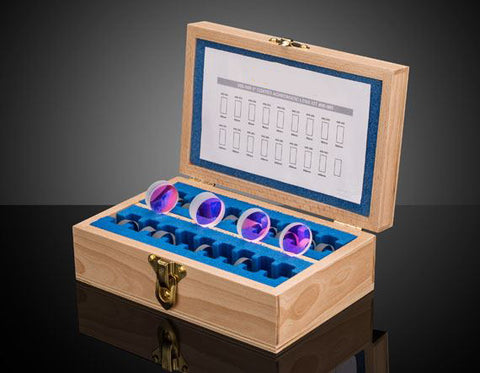

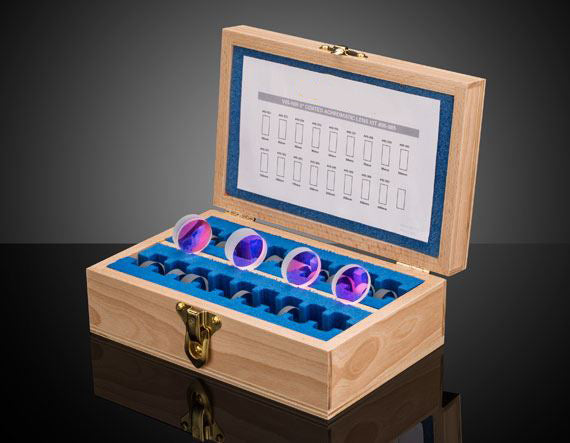

E-48615 25.0mm Diameter VIS 0° Coated, Achromatic Lens Kit

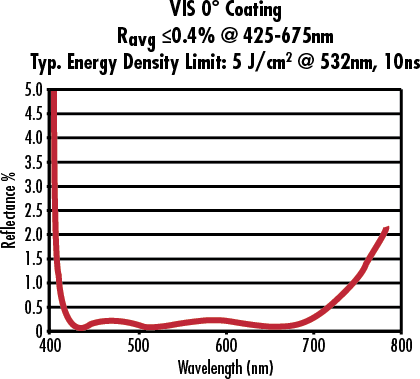

Product VIS 0 Coating Curve

Product Family Description

  • Kits Available for 12.5mm and 25mm Diameter Lenses
  • MgF2, VIS 0°, and VIS-NIR Coating Options
  • Compatible with Tube and Optical Cage System Mechanics
  • Note: Potential change of packaging

TECHSPEC® Achromatic Lens Kits contain our highest quality optics with various effective focal lengths to fit our optics mounts. All lenses feature an Anti-Reflection coating. For complete specifications on each lens within each kit, please refer to the table in the Technical Information tab.

Note: Due to supply chain issues, our kits may be delivered with an alternative packaging solution in place of a wooden box.

Diameter (mm): 25.00
Coating: VIS 0° (425-675nm)
Coating Specification: Ravg ≤0.4% @ 425 - 675nm
Focal Lengths Included (mm):
30, 35, 40, 45, 50, 60, 75, 85, 100, 125, 150, 175, 200, 225, 250, 300, 400
Number of Lenses: 17.00
Type: Achromatic Lens
Wavelength Range (nm): 425 - 675
