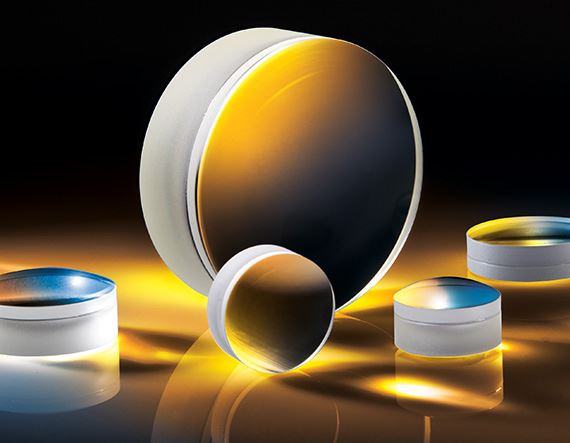

E-49-318 9mm Dia. x 45mm FL, VIS-NIR Coated, Achromatic Lens

Fosco Connect Part No.: E-49318

  • $ 122.50 or



E-49318 9mm Dia. x 45mm FL, VIS-NIR Coated, Achromatic Lens

Product VIS-NIR Coating Curve

Product ISO

Product Drawing

Diameter (mm): 9.00 +0.0/-0.025
Effective Focal Length EFL (mm): 45.00
Focal Length Tolerance (%): ±2
Back Focal Length BFL (mm): 42.97
Focal Length Specification Wavelength (nm): 587.6
Clear Aperture CA (mm): 8.1
Centering (arcmin): <1
Center Thickness CT 1 (mm): 3.00
Center Thickness CT 2 (mm): 1.30
Center Thickness Tolerance (mm): ±0.2
Radius R1 (mm): 27.83
Radius R2 (mm): -19.75
Radius R3 (mm): -57.06
Edge Thickness ET (mm): 3.76

Surface Quality: 40-20
f/#: 5.00
Numerical Aperture NA: 0.10
Coating: VIS-NIR (400-1000nm)
Coating Specification:
Rabs ≤0.25% @ 880nm
Ravg ≤1.25% @ 400 - 870nm
Ravg ≤1.25% @ 890 - 1000nm
Power (P-V) @ 632.8nm: 1.5λ
Irregularity (P-V) @ 632.8nm: λ/4
Bevel: Protective bevel as needed
Type: Achromatic Lens
Wavelength Range (nm): 400 - 1000
