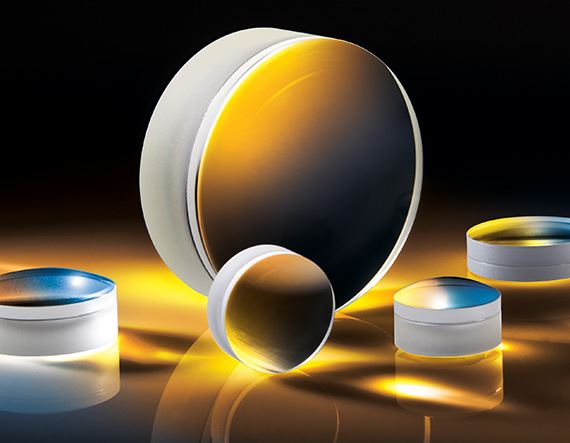

E-49-330 12.5mm Dia. x 75mm FL, VIS-NIR Coated, Achromatic Lens
E-49330 12.5mm Dia. x 75mm FL, VIS-NIR Coated, Achromatic Lens
Diameter (mm): 12.50 +0.0/-0.025
Effective Focal Length EFL (mm): 75.00
Focal Length Tolerance (%): ±2
Back Focal Length BFL (mm): 72.35
Focal Length Specification Wavelength (nm): 587.6
Clear Aperture CA (mm): 11.50
Centering (arcmin): <1
Center Thickness CT 1 (mm): 3.00
Center Thickness CT 2 (mm): 1.60
Center Thickness Tolerance (mm): ±0.2
Radius R1 (mm): 46.44
Radius R2 (mm): -33.77
Radius R3 (mm): -95.94
Edge Thickness ET (mm): 3.97
Surface Quality: 40-20
f/#: 6.00
Numerical Aperture NA: 0.08
Coating: VIS-NIR (400-1000nm)
Coating Specification:
Rabs ≤0.25% @ 880nm
Ravg ≤1.25% @ 400 - 870nm
Ravg ≤1.25% @ 890 - 1000nm
Ravg ≤1.25% @ 400 - 870nm
Ravg ≤1.25% @ 890 - 1000nm
Power (P-V) @ 632.8nm: 1.5λ
Irregularity (P-V) @ 632.8nm: λ/4
Bevel: Protective bevel as needed
Type: Achromatic Lens
Wavelength Range (nm): 400 - 1000
