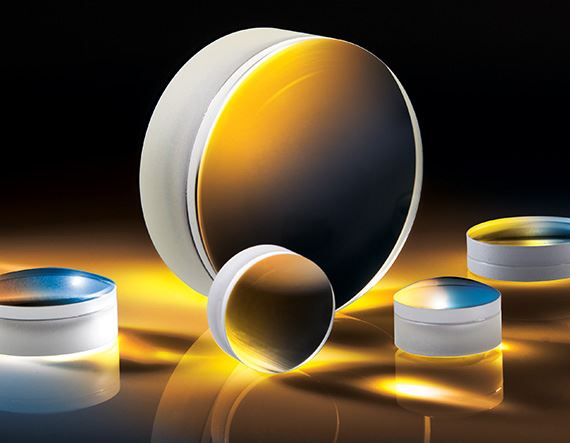

E-49-338 15mm Dia. x 75mm FL, VIS-NIR Coated, Achromatic Lens
E-49338 15mm Dia. x 75mm FL, VIS-NIR Coated, Achromatic Lens
Diameter (mm): 15.00 +0.0/-0.025
Effective Focal Length EFL (mm): 75.00
Focal Length Tolerance (%): ±2
Back Focal Length BFL (mm): 70.78
Focal Length Specification Wavelength (nm): 587.6
Clear Aperture CA (mm): 14.00
Centering (arcmin): <1
Center Thickness CT 1 (mm): 5.00
Center Thickness CT 2 (mm): 2.50
Center Thickness Tolerance (mm): ±0.2
Radius R1 (mm): 39.61
Radius R2 (mm): -36.46
Radius R3 (mm): -145.02
Edge Thickness ET (mm): 6.59
Surface Quality: 40-20
f/#:5.00
Numerical Aperture NA: 0.10
Coating:VIS-NIR (400-1000nm)
Coating Specification:
Rabs ≤0.25% @ 880nm
Ravg ≤1.25% @ 400 - 870nm
Ravg ≤1.25% @ 890 - 1000nm
Ravg ≤1.25% @ 400 - 870nm
Ravg ≤1.25% @ 890 - 1000nm
Power (P-V) @ 632.8nm: 1.5λ
Irregularity (P-V) @ 632.8nm: λ/4
Bevel: Protective bevel as needed
Type: Achromatic Lens
Wavelength Range (nm): 400 - 1000
