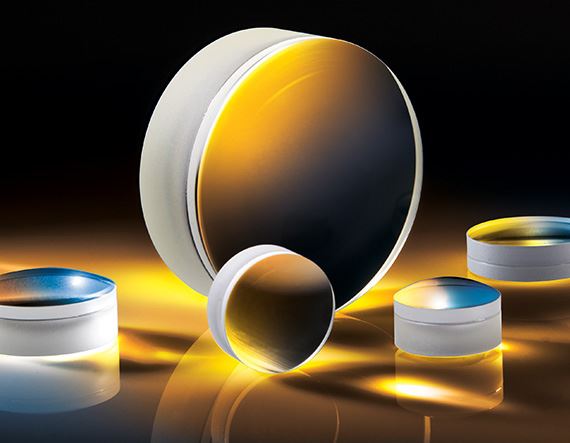

E-49-958 20mm Dia. x 80mm FL, VIS-NIR Coated, Achromatic Lens
E-49958 20mm Dia. x 80mm FL, VIS-NIR Coated, Achromatic Lens
Diameter (mm): 20.00 +0.0/-0.025
Effective Focal Length EFL (mm): 80.00
Focal Length Tolerance (%): ±2
Back Focal Length BFL (mm): 77.26
Focal Length Specification Wavelength (nm): 587.6
Clear Aperture CA (mm): 19.00
Centering (arcmin): <1
Center Thickness CT 1 (mm): 4.00
Center Thickness CT 2 (mm): 2.00
Center Thickness Tolerance (mm): ±0.2
Radius R1 (mm): 50.49
Radius R2 (mm): -37.06
Radius R3 (mm): -102.19
Edge Thickness ET (mm): 4.51
Surface Quality: 40-20
f/#: 4.00
Numerical Aperture NA: 0.13
Coating: VIS-NIR (400-1000nm)
Coating Specification:
Rabs ≤0.25% @ 880nm
Ravg ≤1.25% @ 400 - 870nm
Ravg ≤1.25% @ 890 - 1000nm
Ravg ≤1.25% @ 400 - 870nm
Ravg ≤1.25% @ 890 - 1000nm
Power (P-V) @ 632.8nm: 1.5λ
Irregularity (P-V) @ 632.8nm: λ/4
Bevel: Protective bevel as needed
Type: Achromatic Lens
Wavelength Range (nm): 400 - 1000
