E-52-306 25.0mm Diameter MgF2 Coated, Achromatic Lens Kit

Fosco Connect Part No.: E-52306

$ 1,685.00 or

E-52306 25.0mm Diameter MgF2 Coated, Achromatic Lens Kit

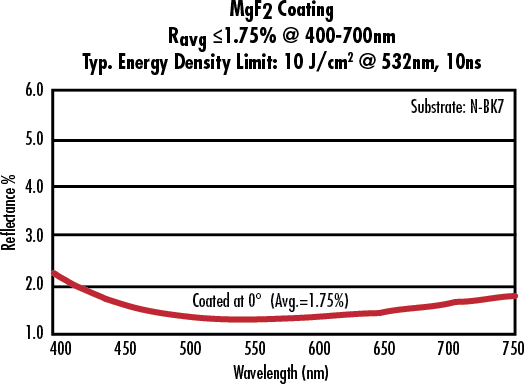

Product MGF2 Coating Curve

Diameter (mm): 25.00

Coating: MgF₂ (400-700nm)

Coating Specification: R_avg ≤1.75% @ 400 - 700nm

Focal Lengths Included (mm):

30, 35, 40, 45, 50, 60, 75, 85, 100, 125, 150, 175, 200, 225, 250, 300, 400

Number of Lenses: 17.00

Type: Achromatic Lens

Wavelength Range (nm): 400 - 700

Product Family Description

Kits Available for 12.5mm and 25mm Diameter Lenses
MgF₂, VIS 0°, and VIS-NIR Coating Options
Compatible with Tube and Optical Cage System Mechanics
Note: Potential change of packaging

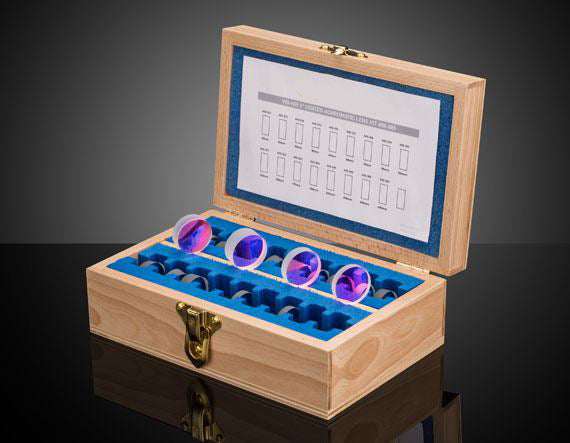

TECHSPEC® Achromatic Lens Kits contain our highest quality optics with various effective focal lengths to fit our optics mounts. All lenses feature an Anti-Reflection coating. For complete specifications on each lens within each kit, please refer to the table in the Technical Information tab.

Note: Due to supply chain issues, our kits may be delivered with an alternative packaging solution in place of a wooden box.
