E-54-567 90mm Dia x 849.9mm FL Achromatic Lens, Mtd

Fosco Connect Part No.: E-54567

  • $ 975.00 or



E-54567 90mm Dia x 849.9mm FL Achromatic Lens, Mtd

Product MGF2 Coating Curve

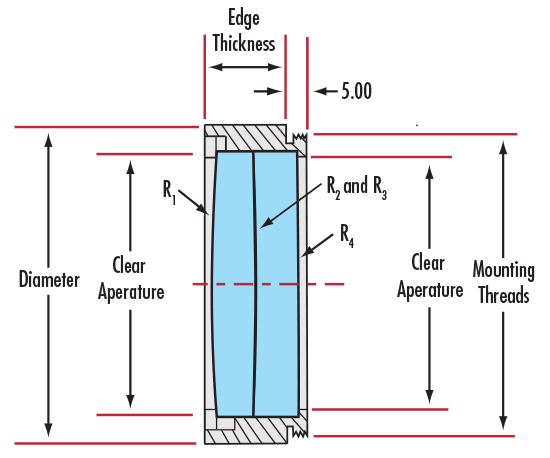

Product Drawing

Diameter (mm): 90.00 +0.00/-0.08
Effective Focal Length EFL (mm): 849.96
Focal Length Tolerance (%): ±1
Back Focal Length BFL (mm): 838.69
Focal Length Specification Wavelength (nm): 587.6
Clear Aperture CA (mm): 72.00
Centering (arcmin): 5.00
Center Thickness CT 1 (mm): 13.08
Center Thickness CT 2 (mm): 10.16
Center Thickness Tolerance (mm): ±0.86
Radius R1 (mm): 497.21
Radius R2 (mm): -345.82
Radius R3 (mm): -344.20
Radius R4 (mm): -1227.86
Edge Thickness ET (mm): 23.07
Substrate:
N-BK7 / N-SF2
Surface Quality: 60-40
f/#: 11.1
Numerical Aperture NA: 0.05
Coating: MgF2 (400-700nm)
Coating Specification: Ravg ≤1.75% @ 400 - 700nm
Mount Thickness (mm): 28.07
Mounting Threads: M86 x 1.0

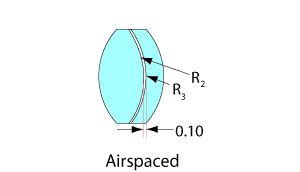

Construction: Mounted, Airspaced 0.10mm
Bevel: Protective bevel as needed
Type: Achromatic Lens
Wavelength Range (nm): 400 - 700

Product Family Description

  • Offered in Cemented or Air-Spaced Designs
  • Mounted Versions Available for Easy Integration
  • Feature MgF2 Anti-Reflection Coating

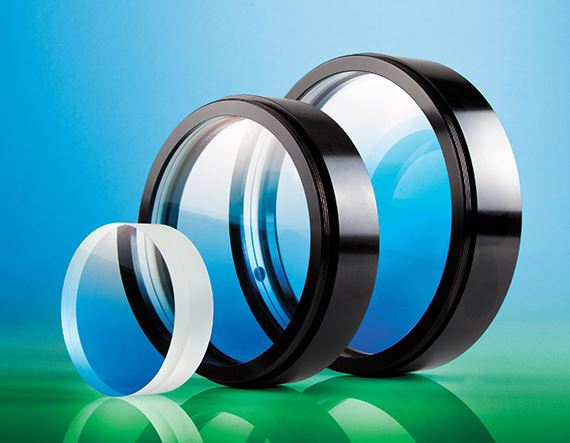

TECHSPEC® Large Precision Achromatic Lenses offer near-diffraction limited performance across the designated wavelength range. These color-corrected achromatic lenses feature long focal lengths and are available in either cemented or air-spaced designs. Mounted versions feature a male mounting thread for easy integration into optical systems. Adhesive foil spacers and mounting instructions are included for unmounted, air-spaced achromatic lenses.
