E-85-302 25mm Dia. x 25mm EFL Precision Aspherized Achromatic Lens
E-85302 25mm Dia. x 25mm EFL Precision Aspherized Achromatic Lens

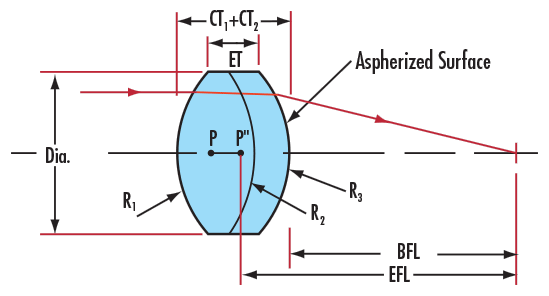

Diameter (mm): 25.00 +0.0/-0.1
Effective Focal Length EFL (mm): 25.00
Back Focal Length BFL (mm): 16.40
Focal Length Specification Wavelength (nm): 587.6
Clear Aperture CA (mm): 22.5
Centering (arcmin): ≤3
Center Thickness CT (mm): 25.00
Center Thickness CT 1 (mm): 17.00
Center Thickness CT 2 (mm): 8.0
Center Thickness Tolerance (mm): ±0.2
Surface Quality: 20-10
f/#: 1.00
Numerical Aperture NA: 0.50
Coating: MgF2 (400-700nm)
Coating Specification: Ravg ≤1.75% @ 400 - 700nm
Type: Achromatic Lens
Wavelength Range (nm): 450 - 700
Asphere Figure Error, RMS @ 632.8nm: 0.8λ
Product Family Description
- All Glass Color-Corrected Asphere
- Ideal for Imaging and Biotech Applications
- MgF2 Coated
Featuring an all glass design, TECHSPEC® Precision Aspherized Achromatic Lenses are truly achromatic, with less than 10μm of lateral chromatic aberration. These achromatic lenses are diffraction limited over the full visible spectrum, and have high numerical apertures for increased light throughput and small spot sizes. TECHSPEC® Precision Aspherized Achromatic Lenses are ideal for fluorescence microscopy, low signal-to-noise imaging applications, and multiple laser biotech applications.
