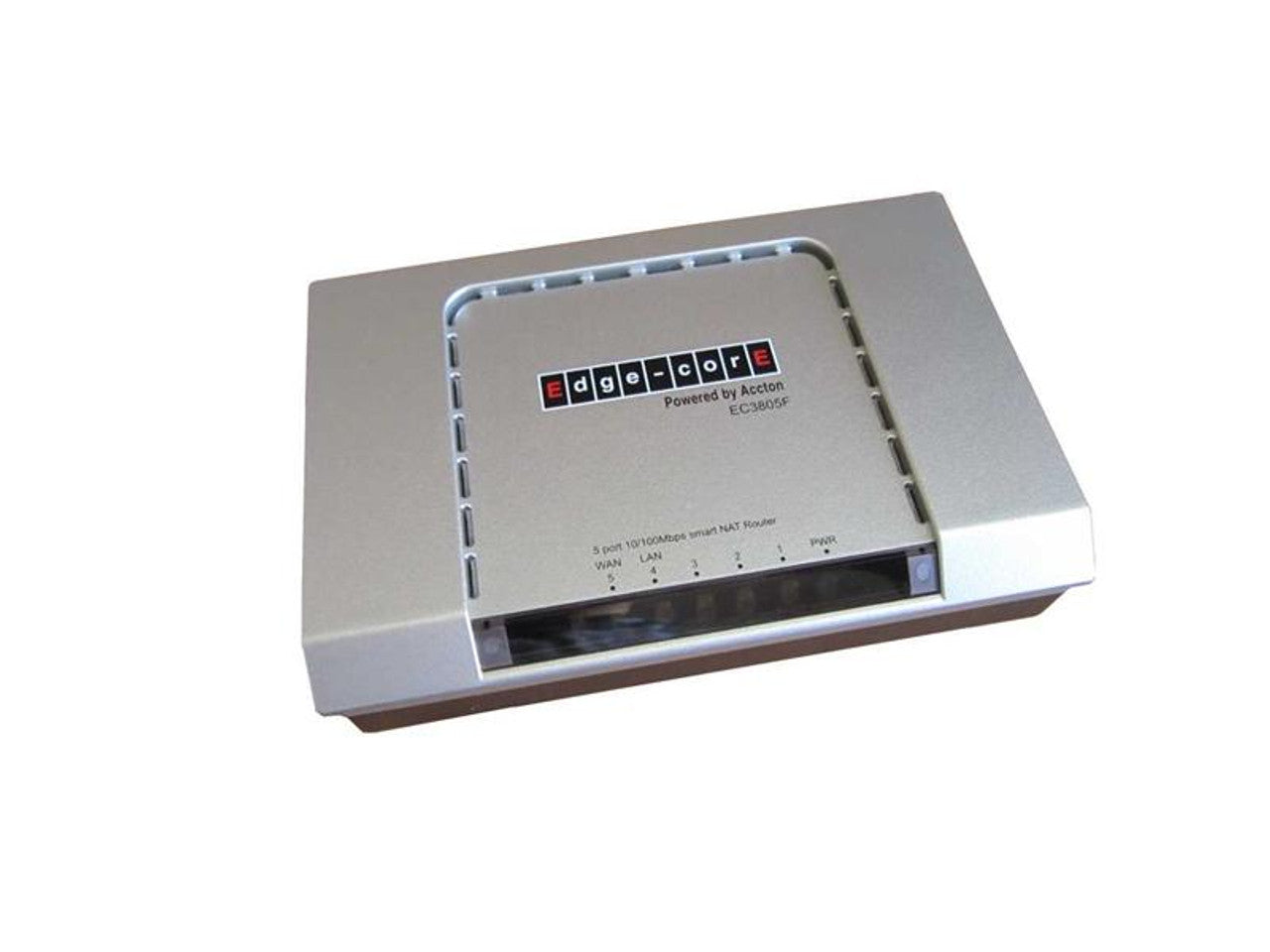

Managed Fiber Gateway w/ 4 port Router and BiDi single strand uplink for FTTH applications
Move your mouse over image or click to enlarge

Managed Fiber Gateway w/ 4 port Router and BiDi single strand uplink for FTTH applications

CTC Union Part No.: EC3805F

  • $ 98.99 or


Product description
EC3805F is a low cost Fiber Gateway designed for Fiber-To-The-Home (FTTH) applications. The Fiber Gateway provides 100Mbps of full duplex connection for subscribers through its single strand single-mode WDM up-link port. The gateway offers a router with 4 Fast Ethernet RJ45 copper ports for the local networking. The unit provides very useful mass deployment features 802.3ah support and remote provisioning and management. Bandwidth control features allow Service Providers to better manage their network load and QoS Features and full NAT and 802.1Q VLAN support allow deployment of future triple play services.
Product Features

  • Fiber interface runs 100Mbps upstream/downstream
  • 4 port Ethernet switch with 10/100 ports and Auto MDI/MDI-X cable detection
  • hardware NAT router (wirespeed throughput)
  • Bandwidth control ingress/egress:256k | 512k | 2M | 5M | 10M | 100Mbps
  • Firewall features: NAT with VPN pass-through, DMZ, 4K NAT sessions
  • IGMP Snooping V1/V2, IGMP Throttling
  • DHCP Client/ Option 82/ Server
  • web based management, SNMP
  • remote firmware upgrade

Hardware Technical Specifications

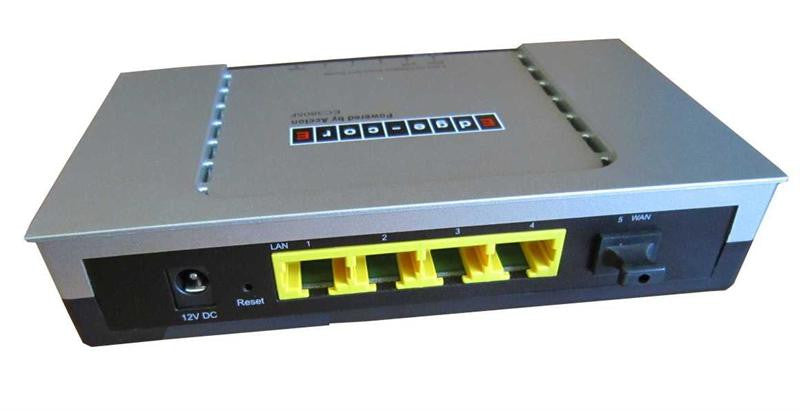

LAN Interfaces: Four RJ45 copper IEEE 802.3u 10/100Base-TX
WAN interface: Single-mode single strand WDM transceiver Tx:1310nm/Rx:1550nm
Back LEDs: PWR, WAN, LAN1~4
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
Temperature: 0 5°C (Operating); 0 7°C (Storage)
Humidity: 20 80% non condensing (Operating); 0 90% (Storage)
Consumption: less than 4W
Dimensions(WxDxH): 147mm x 94mm x 30mm
Management: web-base, SNMP
Compliance: CE, FCC Class A
MTBF: 57,000 hours
;Product Sheet:
