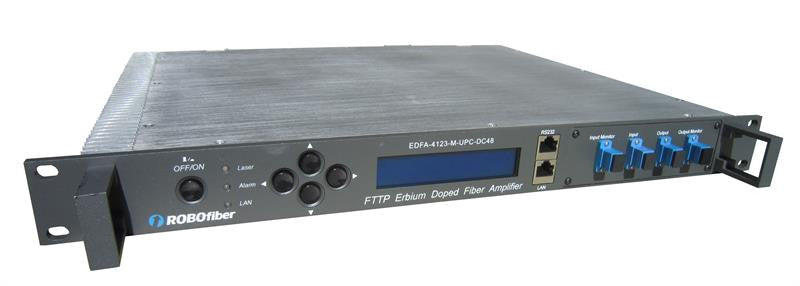

EDFA-4123 DWDM C-Band EDFA Booster, 23dBm power and 23dB max gain, SNMP managed, 1RU 19" rack mountable
Product description
The EDFA-41 Booster series are the ideal equipment for achieving DWDM telecom long range transmissions or CATV operator network extensions. The Boosters usually install at launch sites, just after the transmitting laser. With an advanced AGC electronics they provide ideal channel gain flatness while covering the whole 45 channels available in the DWDM C Band spectrum. EDFA-41 Booster series features a low power consumption design that provides low thermal dissipation anid greater life span of the EDFA pump.
The EDFA-41xx Booster series have LCD panel for local management as well as console and Ethernet ports for remote management. SNMP and web management is available on all EDFA series products.
EDFA-4123-M4-SCU-DC48 EDFA Booster provides a maximum power of 23dBm and an adjustable gain up to 23dB. It has optical monitoring ports for both IN and OUT active optical ports and is equipped with SC/UPC connectors. The DC48V version has DC36~72V power input requirement and can be changed to AC input if required.
Applications
45 channels DWDM system
Long distance trunk network
MAN or access network
SDH/PDH transmission system
FTTx PON
Product Features
C-Band operating wavelength: 1529.16~1563.86nm
excellent gain flattened feature (GF<1.0dB)
low noise figure
Carrier-class security and reliability, SNMP and web network management
LCD & LED front panel provide direct status and warning alarms
Standard RS232 console interface
10/100M Ethernet interface supports SNMP and WEB remote network management
optional redundant power supplies supporting hot-swap function
optional configurable optical monitoring ports for input and output ports on booster
low power consumption
standalone or rack mountable 19" (or optional 23") for EIA or ETSI rack environment
Important: The default Booster series configuration include options like monitoring ports for both IN and OUT fiber ports and SC/UPC optical connectors.
