EXFO AXS-120-SM1 Single Mode Access Mini-OTDR, 1310/1550nm, SC/A

Overview

The EXFO AXS-120-SM1 is a compact, high-performance single-mode OTDR designed for the field-based deployment, maintenance, and troubleshooting of access networks. This versatile instrument integrates an OTDR with a visual fault locator (VFL), in-line power checker, and light source, making it a comprehensive tool for FTTx, passive optical LAN (POL), CATV, and DAS installation projects.

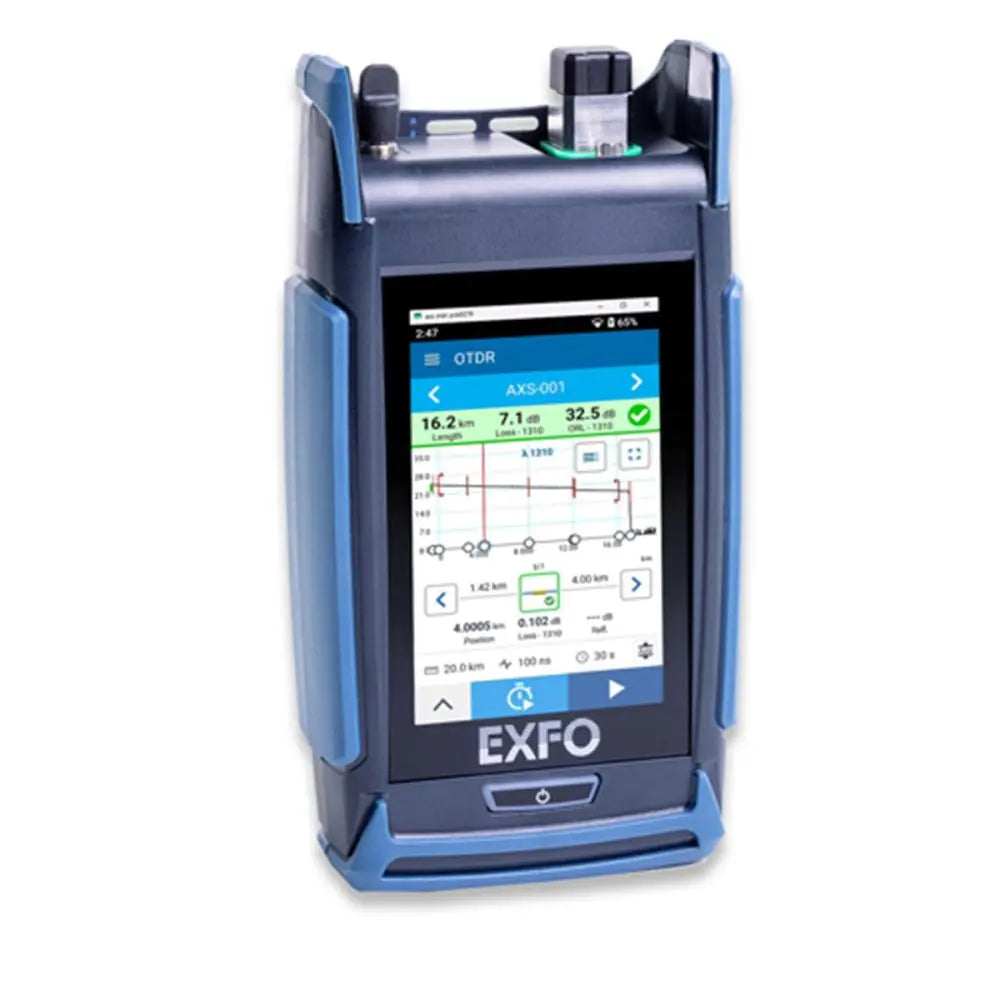

Equipped with a 4-inch high-visibility touchscreen, the AXS-120-SM1 simplifies operation in diverse lighting conditions. It features automated macrobend detection, short dead zones, and the Optical Link Mapper (OLM) function, which converts complex OTDR traces into easy-to-read, icon-based diagrams. Built for demanding environments, this unit includes 8GB of internal memory and supports all-day battery autonomy.

Key Features

• Dynamic Range
  Features a high dynamic range of up to 34/32 dB for testing longer or higher-loss links.
• Optical Link Mapper (OLM)
  Automatically interprets traces to provide a clear, icon-based view of link elements, reducing the need for advanced analysis.
• Integrated Testing Tools
  Includes built-in VFL, power checker, and light source, reducing the amount of equipment technicians need to carry.
• High-Visibility Touchscreen
  A 4-inch display provides clear visibility in outdoor conditions for improved productivity.
• Automated Macrobend Detection
  Identifies excessive fiber bends automatically to help troubleshoot link issues quickly.
• Extended Battery Life
  Engineered with enough capacity for all-day field testing without needing a recharge.
• Onboard Reporting
  Features 8GB of internal memory and built-in PDF reporting capabilities to streamline documentation.

Applications

• FTTx Network Installation
• Access-Network Testing (P2P)
• Passive Optical LAN (POL)
• CATV and Hybrid Fiber-Coaxial (HFC) Network Testing
• FTTA (Fiber-to-the-Antenna)
• DAS Installation

Package Contents

• AXS-120-SM1 OTDR Unit
• Swap-out SC/APC Connector
• USB-C Cable
• USB-C AC Adapter
• Wrist Strap

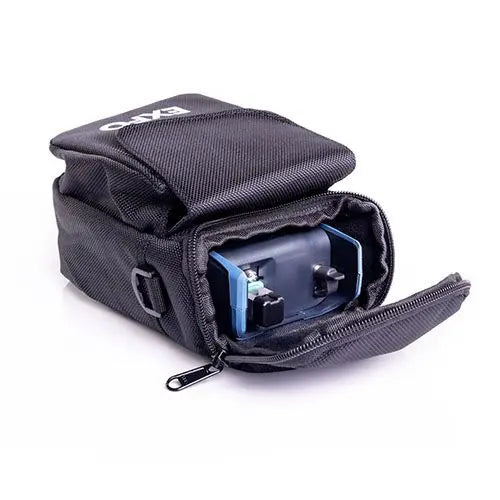

• Soft Carry Case

Technical Specifications

Frequently Asked Questions

Does this unit include a built-in light source?
Yes, it includes an integrated light source along with a VFL and an in-line power checker.

What is the maximum dynamic range?
The unit features a dynamic range of up to 34/32 dB.

Is the connector field-replaceable?
Yes, the unit comes with a swap-out SC/APC connector.

Can I generate reports directly on the device?
Yes, the device supports onboard PDF reporting and has 8GB of internal memory.

What type of screen is used?
It utilizes a 4-inch high-visibility touchscreen optimized for outdoor use.
