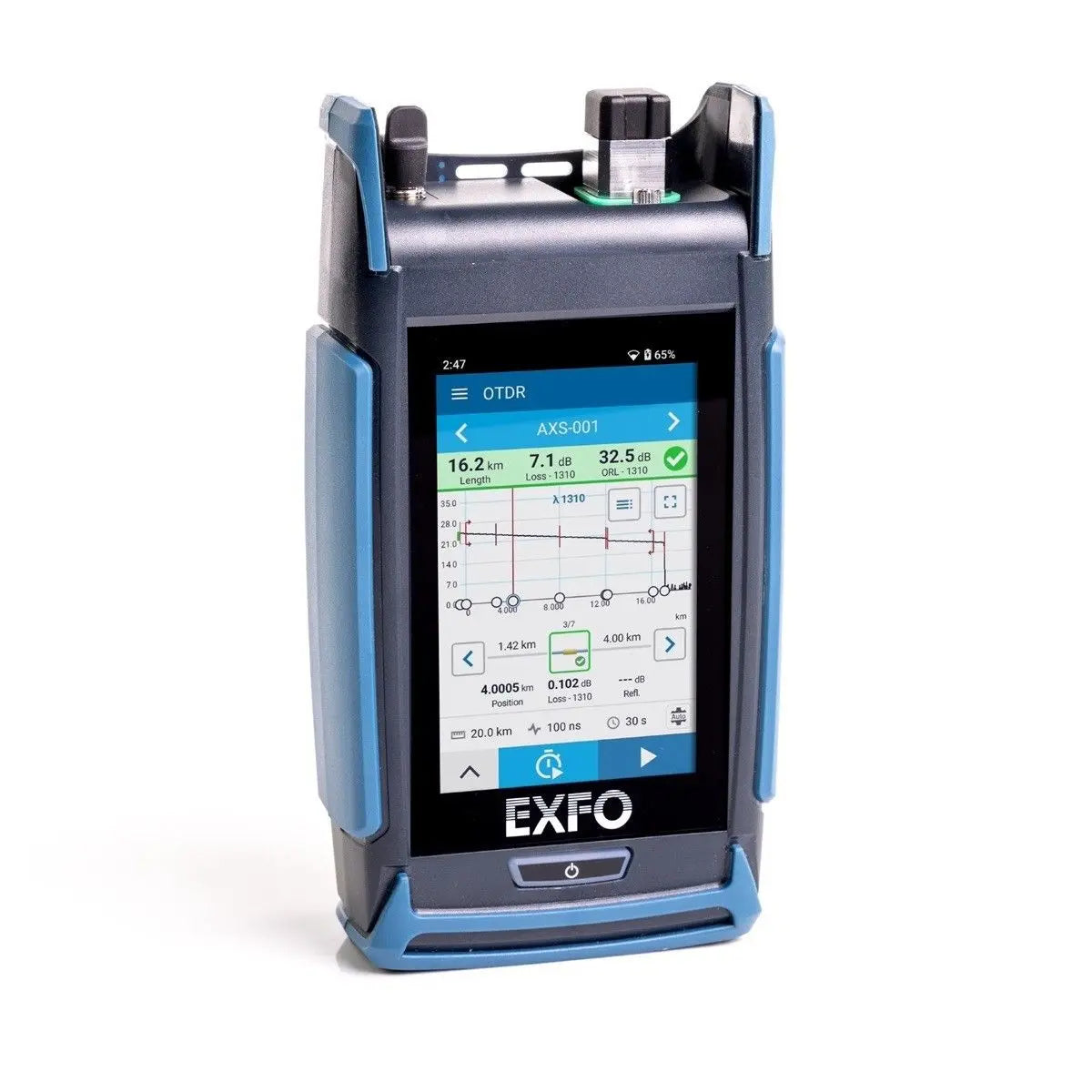

The EXFO AXS-130-SM1 Compact OTDR is an all-in-one test solution engineered for FTTx/PON service activation and maintenance. It is specifically designed to perform testing through complex networks including splitters up to 1x128, making it an essential tool for GPON, EPON, XGS-PON, and 10GE EPON deployments. Additionally, it supports access network (P2P), metro links, and passive optical LAN (POL) environments.
The device features an integrated visual fault locator (VFL), an in-line power checker, and a light source. It utilizes the Optical Link Mapper (OLM) to interpret traces automatically, presenting complex data in an easy-to-read, icon-based format. Housed in a rugged chassis with a 4-inch touchscreen and all-day battery autonomy, it is built for field use in varied operating environments.
Key Features
-
High Dynamic Range
Features a 42/40 dB dynamic range for testing through high-loss splitters. -
Optical Link Mapper
Automatically interprets OTDR traces into a clear, icon-based link map for faster troubleshooting. -
Integrated Test Tools
Includes a built-in VFL, light source, and in-line power checker to consolidate equipment needs. -
FTTx Optimized
Supports testing for various PON standards including GPON, EPON, and XGS-PON. -
Automated Macrobend Detection
Identifies critical fiber stress automatically, preventing performance degradation in the field. -
Field-Ready Design
Includes a ruggedized housing, 4-inch touchscreen, and all-day battery life for long shifts. -
Automated Reporting
Allows for direct, onboard PDF reporting to document link status quickly.
Applications
- FTTx/PON network service activation
- GPON, EPON, and XGS-PON testing
- Access network (P2P) testing
- Metro link verification
- Passive Optical LAN (POL) installation and maintenance
Package Contents
- AXS-130-SM1-EA-EUI-91-GP-10-071 OTDR Unit
- Swap-out SC/APC connector
- USB-C cable
- USB-C AC adapter
- Wrist strap
- Soft carry case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | AXS-130-SM1-EA-EUI-91-GP-10-071 |
| Operating Wavelength | 1310/1550 nm |
| Dynamic Range | 42/40 dB |
| Connector Type | SC/APC |
| Display | 4-inch touchscreen |
Frequently Asked Questions
What does the OLM feature provide?
The Optical Link Mapper (OLM) interprets OTDR traces automatically and presents the link as a simplified, icon-based view to reduce manual trace analysis.
Is this unit suitable for PON testing?
Yes, it is designed for FTTx/PON service activation, specifically testing through splitters up to 1x128.
Does this include a warranty?
This product includes a standard one-year warranty.
What is the primary mode of operation for monitoring?
The unit supports both Auto and Real-Time modes for continuous monitoring and dynamic event capture.
Is this unit TAA compliant?
No, this model is non-TAA compliant.
