Overview
The EXFO AXS-130-SM8 is a compact, rugged optical time-domain reflectometer (OTDR) engineered for high-performance testing in FTTx, PON, and metro network environments. Designed for efficiency, this unit features automated multipulse acquisition, allowing for precise testing through splitters with ratios up to 1x128. It is an essential tool for technicians performing FTTx and MDU service activation, including GPON, EPON, XGS-PON, and 10GE EPON architectures.

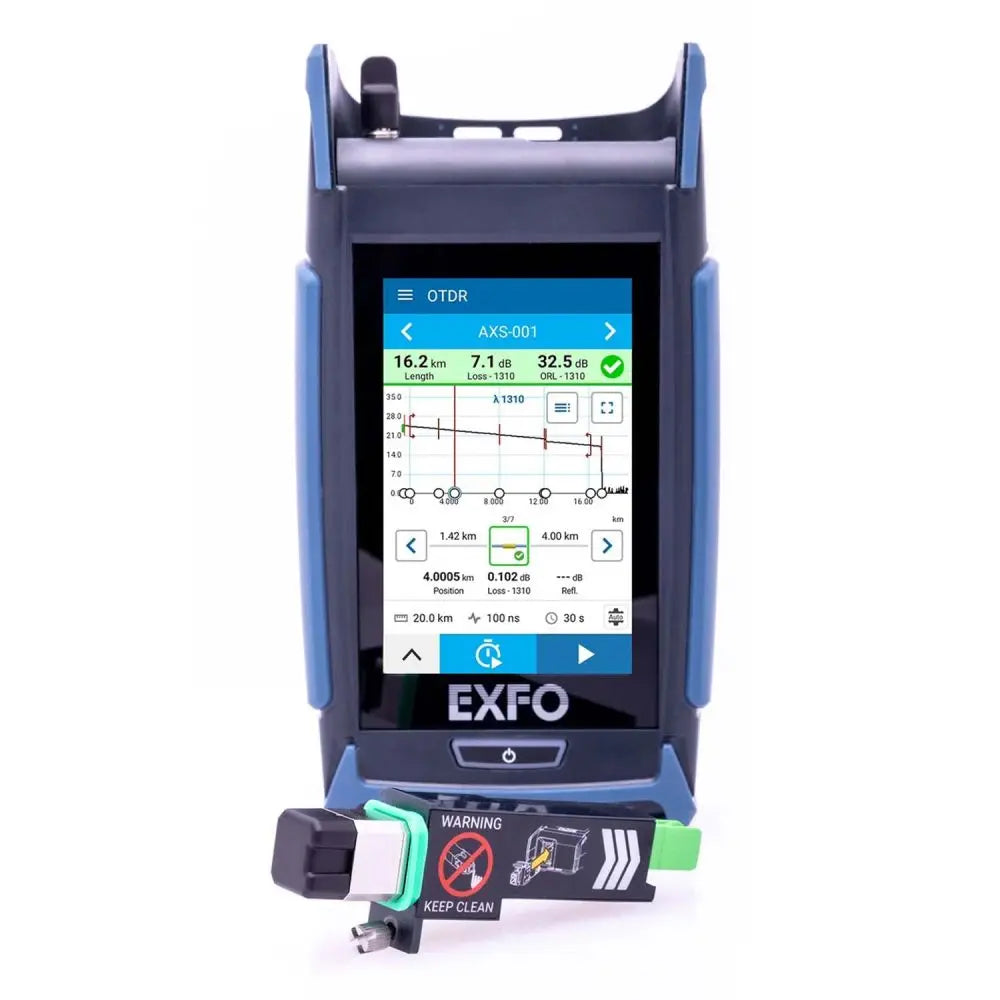

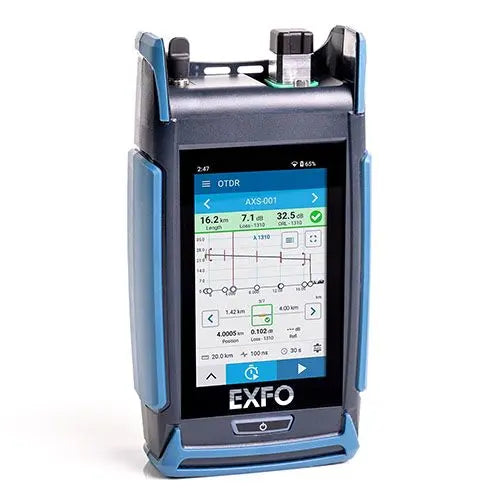

Equipped with a 4-inch touchscreen interface, the AXS-130-SM8 simplifies operation through an icon-based Optical Link Mapper (OLM) that automatically interprets OTDR traces. The device integrates multiple testing functions into a single platform, including an onboard VFL, in-line power checker, and light source, making it highly versatile for live fiber troubleshooting and passive optical LAN (POL) maintenance.
Key Features
-
Automated Multipulse Acquisition
Optimizes pulse width for testing through complex splitters, ensuring accurate characterization of links up to 1x128. -
Integrated Testing Tools
Combines an OTDR, VFL, power checker, and light source in one handheld unit to reduce equipment load for technicians. -
Optical Link Mapper (OLM)
Provides an automated, icon-based view of network elements, eliminating the need for complex trace interpretation. -
High Dynamic Range
Offers up to 42/40/39 dB dynamic range, providing clear visibility of distant fiber network segments. -
Live Fiber Troubleshooting
Designed for safe and effective testing on live fiber networks without service disruption. -
Macrobend Detection
Automatically identifies and flags instances of excessive fiber bending to help isolate physical installation issues. -
Rugged Design
Built to withstand the demands of field environments, ensuring longevity in outside plant applications.
Applications
- FTTx/PON network testing
- MDU service activation
- GPON, EPON, XGS-PON, and 10GE EPON validation
- Live fiber troubleshooting
- Access network (P2P) testing
- Metro link (P2P) characterization
- Passive Optical LAN (POL) testing
Package Contents
- AXS-130-SM8 OTDR
- Swap-out SC/APC connector
- USB-C cable
- USB-C AC adapter
- Wrist strap
- Soft carry case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | AXS-130-SM8 |
| Part Number | AXS-130-SM8-OTDR-MP-FTTH-IOLM-EA-EUI-91-GP-10-061 |
| Operating Wavelengths | 1310/1550/1650 nm |
| Dynamic Range | 42/40/39 dB |
| Display | 4-inch touchscreen |
| Connector | SC/APC |
| Warranty | 1 year |
Frequently Asked Questions
What is the maximum split ratio this OTDR can test through?
The AXS-130-SM8 is designed to test through splitters with ratios up to 1x128.
Does this unit support testing on live networks?
Yes, it is designed for live fiber troubleshooting, including PON service activation.
What is the purpose of the Optical Link Mapper (OLM)?
The OLM simplifies testing by automatically converting complex OTDR traces into an easy-to-read, icon-based link map.
Is an AC adapter included?
Yes, the package includes a USB-C AC adapter for charging the unit.
What kind of connectivity does the device have for reporting?
The unit includes onboard PDF reporting capabilities for documenting test results.
