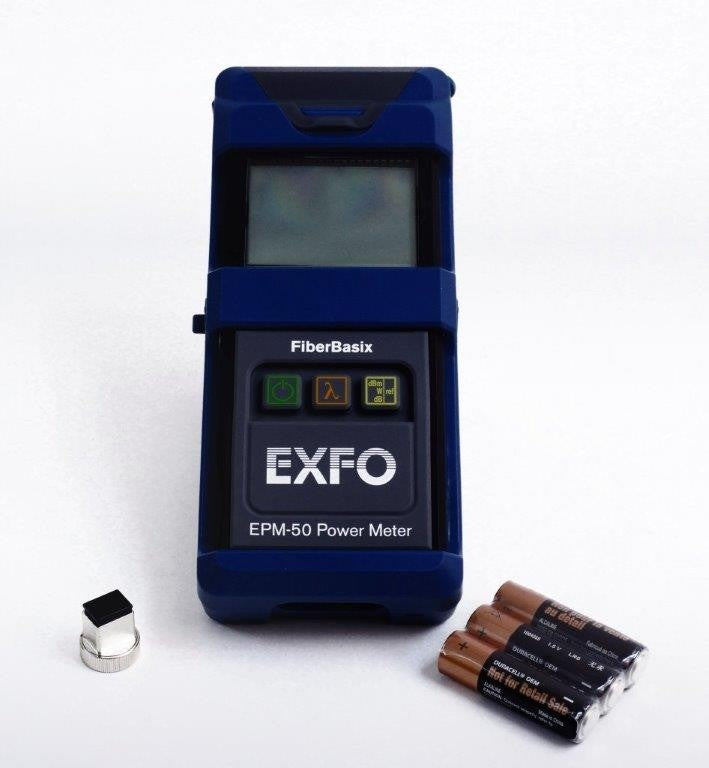

EXFO’s FiberBasix 50 series meets your basic day-to-day test requirements while helping you stay within budget. These worry free, straightforward handheld testers enable accurate measurement of signal attenuation during fiber-optic cable installation. The EPM-50 Power Meter provides highly accurate power measurements, as well as reference value setting capabilities. It offers power autonomy of 300 hours, for reliable, long-lasting performance in the field.

• Easy-to-use interface for error-free testing
• Interchangeable connectors, for first-class flexibility
• Cost-effective, rugged and highly reliable Ideal for testing and troubleshooting optical premises networks
• Available as stand-alone units or in all-in-one test kits including all required accessories (adapters, carrying case, etc.)
• Five test kits designed for specific users/testing needs: LAN, outside plant, contractors, FTTH and CATV

General Specifications
Size (H x W x D):  189 mm x 78 mm x 37 mm (7 7/16 in x 3 1/16 in x 1 7/16 in)
Weight:  0.4 kg (0.9 lb)
Temperature operating: —10 °C to 50 °C (14 °F to 122 °F)

Temperature storage:  —40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity:  0 % to 95 % non-condensing

STANDARD ACCESSORIES
Soft pouch, PMA-22 FC connector adapter, quick reference sticker in five languages, Certificate of Calibration, Certificate of Compliance, three AA batteries

Optional ACCESSORIES
PMA-22 (FC connector adapter for EPM-50 power meter) Manual (user guide)
PMA-32 (ST connector adapter for EPM-50 power meter) GP-10-081 (soft pouch)
PMA-54 (SC connector adapter for EPM-50 power meter) GP-2124 (rubber boot)

ORDERING INFORMATION

ELS-50-XX-LSA-89-RB
ELS-50-23BL = 1310/1550 nm laser (9/125 μm)
ELS-50-235BL = 1310/1490/1550 nm laser (9/125 μm)
ELS-50-12C = 850/1300 nm LED (50/125 μm)

EPM-5X-PMA-22-XX

EPM-53 = InGaAs detector
EPM-53X = High-power InGaAs detector

00 = With rubber boot protector
RB = Without rubber boot protector
PMA-22 = FC adapter for power meter

Test kit ORDERING INFORMATION

FBK-51 LAN Test Kit
› EPM-53-RB Power Meter, InGaAs detector, universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
› ELS-50-12C-RB Light Source, 850/1300 nm LED (one port), FC adapter, rubber boot, soft pouch
› Carrying case (GP-10-061)
› Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
› Extra light source adapters: one LSA-91 (SC) and one LSA-90 (ST)

FBK-52 Outside Plant Test Kit
›EPM-53-RB Power Meter, InGaAs detector, Universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
›ELS-50-23BL-RB Light Source, 1310/1550 nm laser (one port), FC adapter, rubber boot, soft pouch
›Carrying case (GP-10-061)
›Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
›Extra light source adapters: one LSA-91 (SC) and one LSA-90 (ST)

FBK-53 Contractor Kit
›EPM-53-RB Power Meter, InGaAs detector, universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
›ELS-50-12C-RB Light Source, 850/1300 nm LED (one port), FC adapter, rubber boot
›ELS-50-23BL-RB Light Source, 1310/1550 nm laser (one port), FC adapter, rubber boot, soft pouch
›Carrying case (GP-10-061)
›Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
›Extra light source adapters: two LSA-91 (SC) and two LSA-90 (ST)

FBK-54 FTTH Test Kit
›EPM-53X-RB Power Meter, High-power InGaAs detector, universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
›ELS-50-235BL-RB Light Source, 1310/1490/1550 nm laser (one port), FC adapter, rubber boot, soft pouch
›Carrying case (GP-10-061)
›Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
›Extra light source adapters: one LSA-91 (SC) and one LSA-90 (ST)

FBK-55 CATV Test Kit
›EPM-53X-RB Power Meter, high-power InGaAs detector, universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
›ELS-50-23BL-RB Light Source, 1310/1550 nm laser (1 port), FC adapter, rubber boot, soft pouch
›Carrying case (GP-10-061)
›Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
›Extra light source adapters: one LSA-91 (SC) and one LSA-90 (ST)
