Overview

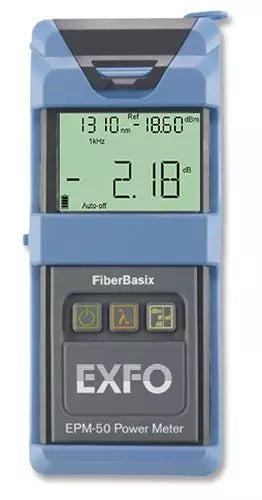

The EXFO EPM-53-PMA-22-RB is a ruggedized handheld optical power meter designed for precision testing in telecommunications, CATV, and enterprise LAN environments. It is engineered to perform high-power measurements for both singlemode and multimode fiber networks, offering reliable performance for field technicians and network installers.
This power meter provides a versatile power range of 10 to -60 dBm and supports five calibrated wavelengths. Featuring a robust push-pull interface and a long-lasting battery life of over 300 hours, the unit is built for demanding field conditions, ensuring consistent and accurate loss measurements.
Key Features
-
Wide Power Range
Capable of measuring signals from 10 to -60 dBm, suitable for a variety of high-power testing applications. -
Universal Interface
Features a universal push-pull design for easy connection and testing. -
Tone Recognition
Allows for rapid fiber identification during installation and maintenance tasks. -
Reference Function
Supports a reference function that enables direct loss measurements, streamlining the testing process. -
Extended Battery Life
Offers over 300 hours of continuous operation, reducing the frequency of battery changes in the field. -
High Precision
Provides a resolution of 0.01 dB and a power uncertainty of 5% for reliable measurement results.
Applications
- CATV network installation and maintenance
- Telecommunication link testing
- Enterprise and LAN fiber network verification
- Singlemode and multimode fiber loss testing
Package Contents
- EPM-53-PMA-22-RB Power Meter
- PMA-89 FC Connector Adapter
- Soft Carrying Pouch
- Quick Reference Sticker (5 languages)
- Certificate of Calibration
- Certificate of Compliance
- 3 x AA Batteries
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Series | FiberBasix 50 |
| Model | EPM-53-PMA-22-RB |
| Power Range | 10 to -60 dBm |
| Resolution | 0.01 dB |
| Power Uncertainty | 5% |
| Connector Type | FC |
| Battery Life | > 300 hours |
| Warranty | 1 Year |
Frequently Asked Questions
What is the primary use of the EPM-53?
It is designed for performing power and loss measurements on both singlemode and multimode fiber networks in telecom and CATV environments.
Does this unit support tone detection?
Yes, the EPM-53 includes tone recognition capabilities for easier fiber identification.
What kind of batteries does the meter use?
The device operates using three AA batteries.
What connector type is provided with this kit?
The kit comes with a PMA-89 FC connector adapter.
How long is the battery life?
The meter provides over 300 hours of battery life during standard use.
