Overview

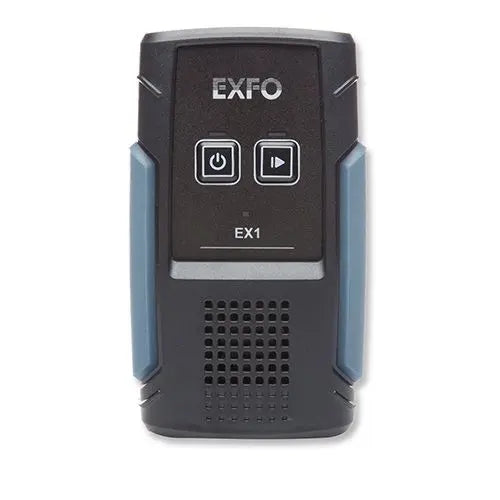

The EXFO EX1 Gigabit Ethernet Tester is a high-performance, FPGA-powered hardware solution designed to qualify broadband connections. By integrating Speedtest by Ookla, this compact tester provides accurate download and upload throughput measurements, making it an essential tool for network technicians and broadband service providers.
Designed for field operations, the EX1 leverages an Android smart device (6.0 Marshmallow and higher) for seamless control, monitoring, and professional report generation. Results can be easily shared in PDF or CSV formats via email or the EXFO Connect cloud service. The device features a portable, durable design with Bluetooth Low Energy (4.0+) connectivity for remote operation up to 100 ft.
The platform is highly flexible, capable of hosting EXFO's Active Verifier VNF to perform over 140 performance tests, including IP connectivity, VoIP qualification, and multi-layer service delivery analysis. It is an ideal solution for both rapid troubleshooting and continuous network monitoring.
Key Features
-
Speedtest by Ookla Integration
Built-in support for industry-standard speed testing to verify actual customer broadband performance. -
FPGA-Powered Hardware
Dedicated hardware architecture ensures line-rate testing and reliable performance verification. -
Versatile Performance Testing
Supports over 140 performance tests via EXFO Active Verifier VNF for comprehensive service qualification. -
Smart Device Integration
Uses an Android mobile device interface for intuitive configuration, data logging, and report generation. -
Cloud Connectivity
Integrated with EXFO Connect for easy data management, cloud-based storage, and remote firmware/software updates. -

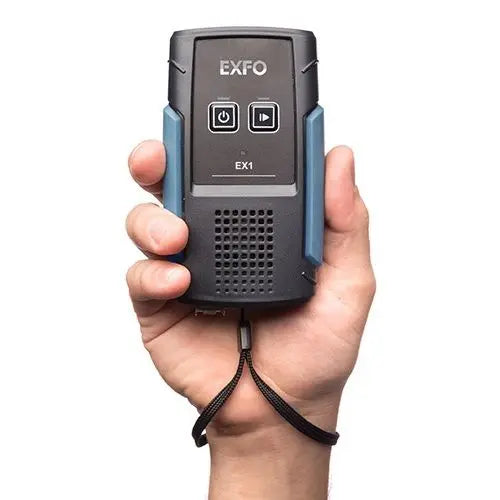

Compact and Portable
Lightweight 1lb unit measuring 5" x 3" x 1-3/4" for easy transport in field tool kits. -
Long-Range Wireless
Bluetooth Low Energy (version 4.0+) enables remote operation from up to 100 ft away. -
Flexible Connectivity

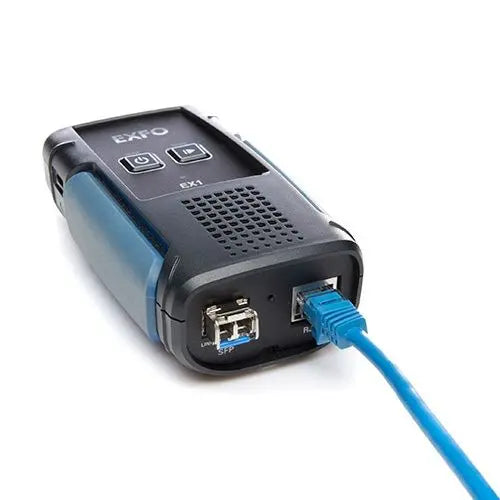

Equipped with an electrical RJ45 test port and a USB 3.0 Type-C port for wide compatibility.
Applications
- Broadband throughput verification
- VoIP service qualification
- Continuous network performance monitoring
- IP connectivity testing
- Multi-layer service delivery troubleshooting
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | EX1 |
| Part Number | 880X340 |
| Test Port | Electrical RJ45 |
| Connectivity | Bluetooth Low Energy (4.0+), USB 3.0 Type-C |
| Memory | 1GB |
| Storage | 8GB |
| Power Source | Rechargeable Li-ion battery |
| Dimensions | 5" x 3" x 1-3/4" |
| Weight | 1lb |
Frequently Asked Questions
What mobile devices are compatible with the EX1?
The EX1 is compatible with Android smart devices running version 6.0 Marshmallow or higher.
How are test reports shared?
Reports can be generated in PDF or CSV formats and shared via email or uploaded to the EXFO Connect cloud service.
What is the wireless range for the device?
The Bluetooth Low Energy (version 4.0+) connection has a range of up to 100 ft.
Is the battery rechargeable?
Yes, the unit is powered by a rechargeable Li-ion battery, and an AC/DC adapter/charger is included.
Can the unit perform tests other than speed tests?
Yes, it can host EXFO's Active Verifier VNF, which supports over 140 performance tests including VoIP qualification and IP connectivity.
