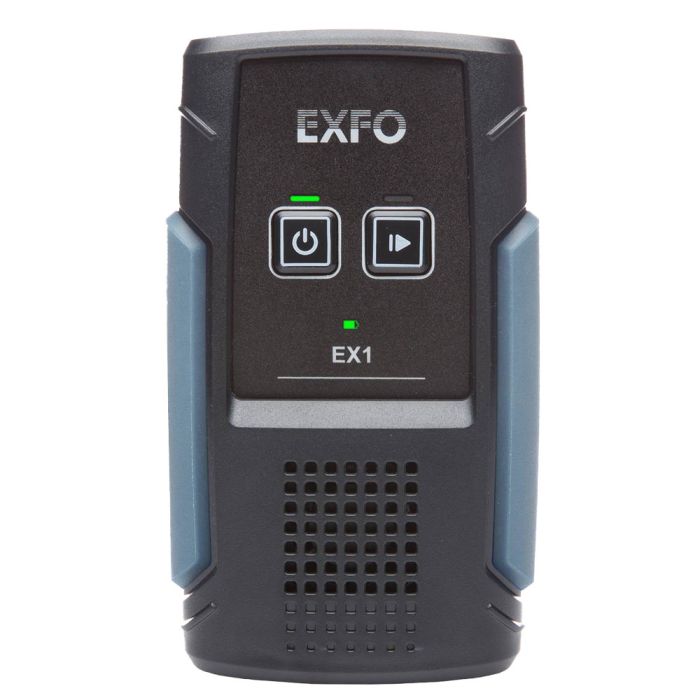

EXFO EX1 Gigabit Multi-Service Test Pod
Overview
The EXFO EX1 is a pocket-sized, multi-service test pod designed for communication service providers and MSOs to qualify and validate fiber-to-the-home (FTTH) and business service quality of experience (QoE). By pairing with an Android or iOS smart device, the EX1 provides an untethered, mobile-driven testing experience for field technicians.
This solution excels in validating full line-rate Gigabit Ethernet, GPON, and Wi-Fi performance. It features a built-in, dedicated Wi-Fi chipset and utilizes the industry-leading Speedtest by Ookla algorithm to deliver repeatable, reliable metrics. Its hardware architecture includes onboard FPGA processing, ensuring carrier-grade performance in a compact, portable form factor.
The EX1 is built for high-efficiency workflows, allowing technicians to generate professional birth certificate reports in PDF or CSV formats. These reports can be instantly shared via email, text, or cloud services, streamlining job closeout processes and reducing administrative overhead for broadband network installations.
Downloads
Key Features
-
Speedtest by Ookla Integration
Uses the industry-standard algorithm to provide repeatable and reliable throughput, latency, and packet loss metrics. -
Dedicated Wi-Fi Chipset
Supports 2.4 GHz and 5 GHz frequency bands for comprehensive Wi-Fi channel map analysis and performance testing. -
GPON ONT Emulation
Supports GPON ONT emulation to validate PON ID, ONU ID, optical RX power, and ODN loss, ensuring successful FTTH deployments. -
Untethered Smart Device Control
Controlled entirely via Android or iOS devices, enabling a cordless experience for test setup and reporting. -
Carrier-Grade Hardware
Features onboard FPGA processing to ensure consistent performance and professional-grade measurement accuracy. -
Automated Reporting
Generates professional PDF or CSV birth certificates for immediate job closeout and record-keeping. -
Long-Lasting Battery
Integrated rechargeable Li-ion smart battery provides enough capacity for an average of 10 residential service visits per day.
Applications
- FTTH network deployments
- Business services QoE validation
- Residential network troubleshooting (Wi-Fi channel optimization, extender placement)
- Public transportation and smart city Wi-Fi service evaluation
- Stadium, hotel, and conference center network assessment
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | EX1 |
| Electrical RJ45 Port | 10/100/1000 Mbit/s |
| Optical SFP Port | 1 GE SFP, SFP GPON ONT, SFP+ XGS-PON ONT |
| Interface Type | SC/APC |
| Wireless Connectivity | 802.11 a/b/g/n/ac (2.4/5 GHz), Bluetooth v4.2 |
| Dimensions | 125 mm x 75 mm x 45 mm |
| Weight | 0.45 kg (1 lb) |
| Operating Temperature | 0 °C to 40 °C |
| Battery Type | Rechargeable Li-ion smart battery |
| Charging Time | 3.5 hours |
Frequently Asked Questions
Does the EX1 require a smart device to operate?
Yes, the EX1 is an untethered tester designed to be controlled via an Android or iOS application for setup, testing, and report generation.
Can the EX1 test Wi-Fi channels?
Yes, it includes a built-in Wi-Fi chipset capable of channel map visualization and analysis to help troubleshoot residential network performance.
What GPON standards are supported?
The EX1 is G.984.1/2/3/4 GPON-compliant and G.988 OMCI-compliant.
How long does the battery last?
The battery is designed to support a full day of field work, typically covering approximately 10 residential broadband service visits.
Are reports customizable?
The system automatically generates PDF or CSV reports that include relevant job information, which can be shared directly from the mobile device.
