Overview

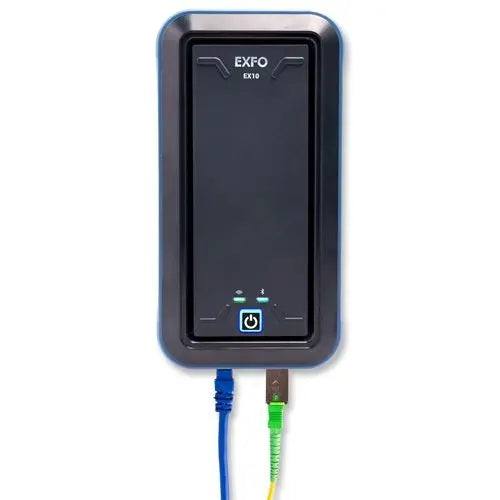

The EXFO EX10 Multigigabit Residential Tester is a professional-grade tool designed for the verification of bandwidth speeds up to 10 Gigabit Ethernet, covering GPON and XGS-PON architectures. It is specifically engineered for network technicians to perform successful service activation, comprehensive troubleshooting, and monitoring of residential quality of experience (QoE), as well as WiFi service optimization.

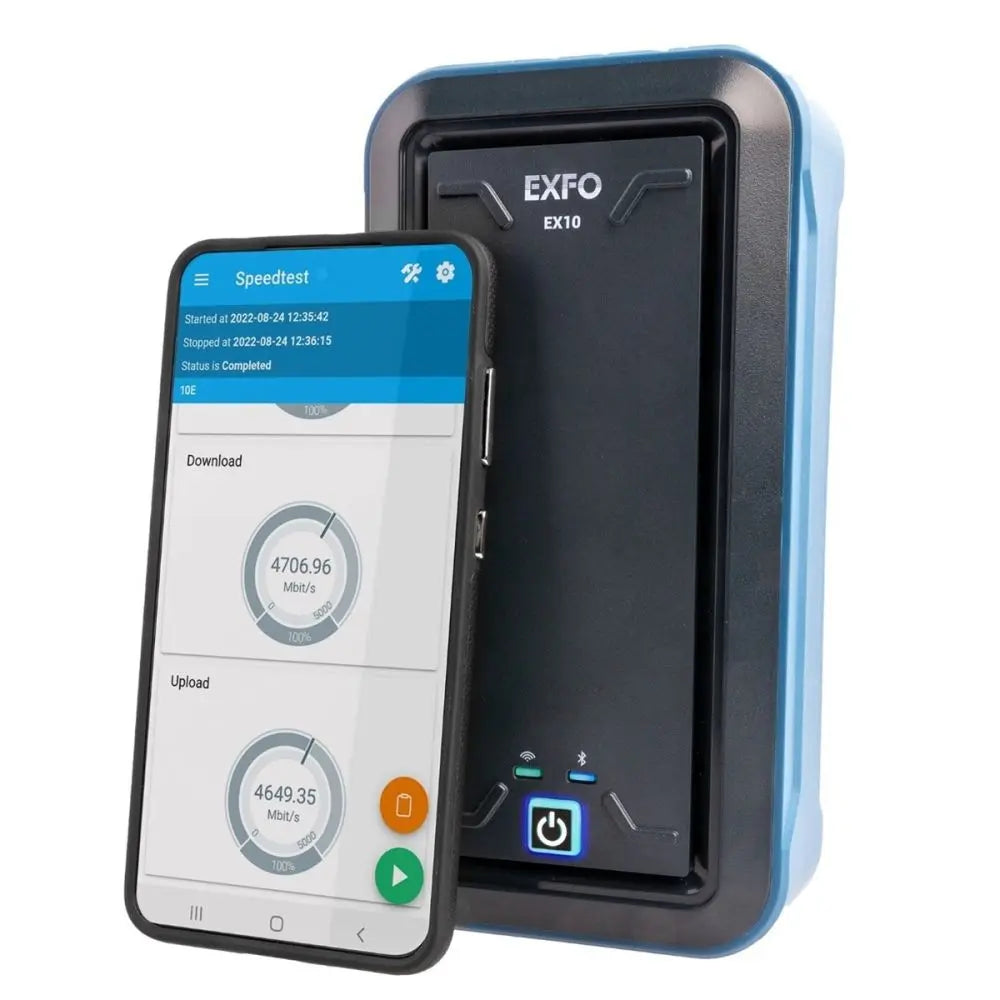

Equipped with 1, 2.5, 5, and 10 Gigabit interfaces, the EX10 supports rigorous performance metrics including latency, download, and upload throughput via Speedtest by Ookla. The unit is managed via a smart device (Android 7.0+ or iOS 13+) over Bluetooth, ensuring a streamlined workflow. It is built for field use, offering an efficient way to generate automated reports in multiple formats including JSON, XML, PDF, and CSV.
Key Features
-
Multigigabit Support
Features 1, 2.5, 5, and 10 GbE interfaces to test a wide range of modern residential and business broadband speeds. -
Ookla Integration
Utilizes Speedtest by Ookla to provide industry-standard throughput and latency metrics for accurate performance verification. -
WiFi Optimization
Testing capabilities extend to WiFi 5, 6, and 6E, covering 2.4 GHz, 5 GHz, and 6 GHz frequency bands for comprehensive connectivity checks. -
PON Capability
Supports GPON and XGS-PON testing, making it suitable for modern fiber-to-the-home (FTTH) service activations. -
Smart Device Operation
Controlled via Bluetooth through a smart device, providing a lightweight and portable interface for the technician. -
Automated Reporting
Generates professional-grade reports in various formats (PDF, CSV, XML, JSON) to streamline documentation and customer hand-off. -
EXFO Exchange Compatible
Seamlessly connects with the EXFO Exchange software platform for data management and centralized test results.
Applications
- Broadband service activation
- Residential fiber-to-the-home (FTTH) troubleshooting
- GPON and XGS-PON performance testing
- WiFi 6E network optimization
- Gigabit and 10G Ethernet network validation
Package Contents
- EXFO EX10 10G Test Pod
- Li-Po Battery (3.7V 44.77Wh)
- Wall-mount AC/DC Charger
- USB Cable
- Ethernet RJ-45 CAT6a Cable
- Soft Carrying Case
Technical Specifications
| Specification | Value |
|---|---|
| Model | EX10 |
| Interfaces | 1, 2.5, 5, 10 Gigabit Ethernet |
| WiFi Support | WiFi 5, 6, 6E (2.4 GHz, 5 GHz, 6 GHz) |
| Battery | Li-Po 3.7V 44.77Wh |
| Connectivity | Bluetooth (to smart device) |
| OS Compatibility | Android 7.0+, iOS 13+ |
Frequently Asked Questions
Does this unit support XGS-PON testing?
Yes, the EXFO EX10 is designed to support both GPON and XGS-PON for residential service activation.
How is the unit operated?

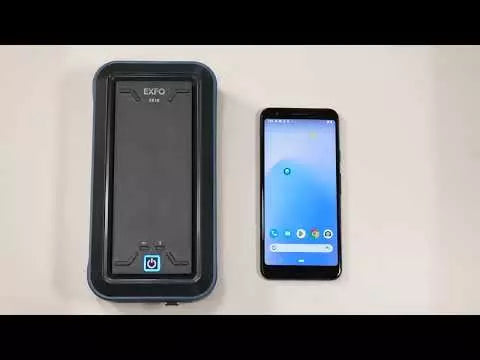

The EX10 is a test pod that connects via Bluetooth to a smartphone or tablet (Android or iOS) running the EXFO application.
Can it test WiFi 6E?
Yes, the device supports WiFi 5, 6, and 6E across 2.4 GHz, 5 GHz, and 6 GHz bands.
What report formats are available?
The unit automatically generates reports in JSON, XML, PDF, and CSV formats.
Is the charger included?
Yes, the package includes a wall-mount AC/DC charger.
