Overview

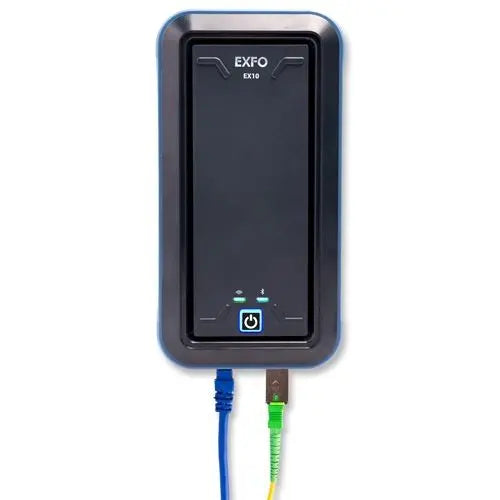

The EXFO EX10-PRO is a professional-grade multi-gigabit tester designed for validating bandwidth speeds up to 10G Ethernet, including GPON and XGS-PON services. Engineered for both residential and business environments, this tester ensures successful service activation and performance optimization. It features native support for 1, 2.5, 5, and 10 Gigabit interfaces, providing technicians with the versatile connectivity required for modern high-speed networks.
By integrating Speedtest by Ookla, the device delivers accurate latency, upload, and download throughput metrics. It includes comprehensive reporting capabilities, allowing users to generate results in PDF, CSV, XML, or JSON formats. Designed for efficiency, the EX10-PRO supports WiFi 5, 6, and 6E frequency bands and integrates seamlessly with the EXFO Exchange platform for data management and collaboration.
Key Features
-
10G Multi-Gigabit Testing
Supports 1, 2.5, 5, and 10 Gigabit Ethernet interfaces for high-bandwidth service validation. -
Ookla Speedtest Integration
Provides standardized performance metrics including latency, upload, and download speeds. -
Automated Reporting
Supports multiple report formats including PDF, CSV, XML, and JSON for comprehensive documentation. -
Advanced WiFi Support
Includes testing capabilities for WiFi 5, 6, and 6E standards across 2.4GHz, 5GHz, and 6GHz bands. -
Smart Loopback Capability
Enables efficient 10G testing to verify end-to-end service throughput. -
EXFO Exchange Compatible
Connects with the EXFO Exchange software platform for streamlined data transfer and test coordination. -
Smart Device Control
Operates via Bluetooth connection to Android and iOS mobile devices.
Applications
- GPON and XGS-PON service activation
- Residential and business Ethernet service verification
- WiFi 6E network optimization
- End-to-end bandwidth throughput testing
Package Contents
- EX10-PRO Tester
- Li-Po Battery (3.7V, 44.77Wh)
- Wall-mount AC/DC Charger
- USB Cable
- Ethernet RJ-45 CAT6a Cable
- Soft Carrying Case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | EX10-PRO |
| Part Number | 880X105 |
| Supported Ethernet Speeds | 1, 2.5, 5, 10 Gigabit |
| Supported WiFi Bands | 2.4GHz, 5GHz, 6GHz (WiFi 5, 6, 6E) |
| Battery | Li-Po 3.7V 44.77Wh |
| Mobile OS Compatibility | Android 7.0+, iOS 13+ |
| Connectivity | Bluetooth |
Frequently Asked Questions
Is this device compatible with Android and iOS?
Yes, the test pod is controlled via Bluetooth using Android 7.0 or higher, or iOS 13 or higher.
Does it support WiFi 6E?
Yes, the device testing capabilities include support for WiFi 5, 6, and 6E across 2.4GHz, 5GHz, and 6GHz bands.
What reports can be generated?
The tester generates reports in JSON, XML, PDF, and CSV formats.
Does it support PON testing?
Yes, it supports validation of bandwidth for GPON and XGS-PON services.
What is the maximum Ethernet speed supported?
The device supports interfaces up to 10 Gigabits per second.
