Overview
The EXFO FBK-51 FiberBasix LAN Multimode Fiber Optic Test Kit is a dedicated measurement solution designed for day-to-day testing of multimode fiber networks. This kit enables technicians to perform loss measurements on enterprise and LAN networks with high accuracy and straightforward operation.

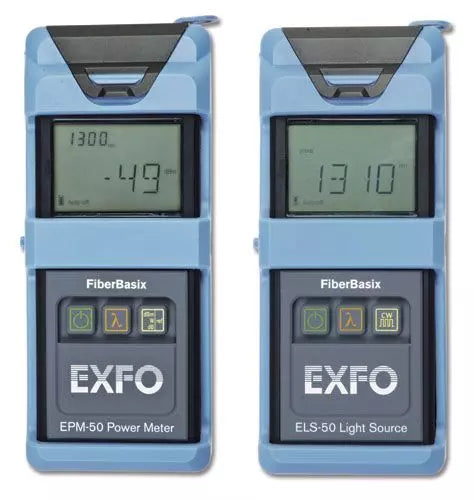

The kit features the EPM-53-RB power meter and the ELS-50-12C-RB LED light source. Designed for the field, the system supports tone recognition for fiber identification and incorporates a reference function for precise, direct loss measurements. The kit is built for durability and extended operation, suitable for standard multimode testing environments.
Key Features
-
Dual Wavelength Testing
Supports testing at 850 nm and 1300 nm to cover standard multimode network requirements. -
Tone Recognition
Enables rapid fiber identification during installation and maintenance tasks. -
High Measurement Resolution
Offers 0.01 dB resolution for precise loss and power measurement. -
Extended Battery Life
The power meter provides over 300 hours of operation, reducing downtime in the field. -
Power Range Flexibility
Equipped for measurements ranging from 10 to -60 dBm, accommodating diverse power levels. -
Interchangeable Adapters
Utilizes swappable connector adapters to support various interface types effectively.
Applications
- LAN and Enterprise fiber network certification
- Multimode fiber link loss testing
- Fiber identification
- Telecommunication network maintenance
Package Contents
- EPM-53 Power Meter
- ELS-50-12C Light Source
- Carrying case
- PMA-54 and PMA-32 power meter adapters
- LSA-91 and LSA-90 light source adapters
- Soft pouch
- FC connector adapters
- Rubber protective boots
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | FBK-51 |
| Detector Type | InGaAs |
| Wavelengths | 850/1300 nm |
| Power Range | 10 to -60 dBm |
| Power Uncertainty | 5% |
| Power Meter Battery Life | >300 hours |
| Light Source Battery Life | >45 hours |
| Spectral Width | 40/120 nm |
| Power Stability | 0.10 dB |
Frequently Asked Questions
Does this kit support single mode fiber?
No, the FBK-51 is specifically optimized for multimode fiber testing.
What is the warranty period?
The product includes a one-year manufacturer warranty.
Can the connector adapters be changed?
Yes, the unit utilizes interchangeable connector adapters for different fiber interfaces.
Does it perform tone identification?
Yes, both the power meter and the light source support tone recognition for identification purposes.
What is the resolution of the power meter?
The power meter provides a resolution of 0.01 dB.
