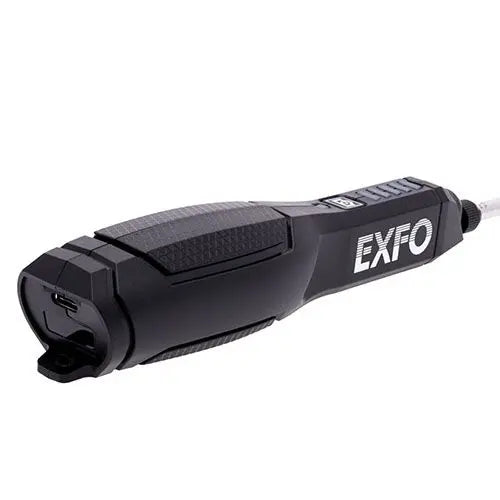

EXFO FIP-200-A-OHC-L-CTIP-OTAP Connector Checker, Long for CTIP

Overview

The EXFO FIP-200-A-OHC-L-CTIP-OTAP Connector Checker is a specialized inspection tool designed for high-density fiber networks, including Fiber-to-the-home (FTTH) and service activation environments. It features a 60mm long-reach optical head, specifically engineered to provide access to connectors inside dense panels and cabinets where space is limited.

Equipped with a high-performance dual-core CPU, the FIP-200 delivers automated assessment of connector end-face conditions in approximately 7 seconds. The device utilizes a quick-connect system for seamless tip changes and supports connectivity via Bluetooth and WiFi for data management through EXFO Exchange. It is designed for autonomous operation with a rechargeable USB-C interface and pass/fail thresholds tailored for rapid broadband activation.

Key Features

• Long-Reach Design
  Features a 60mm optical head to navigate dense fiber panels and enclosures with ease.
• Automated Assessment
  Provides pass/fail results in just 7 seconds using an internal dual-core processor.
• Quick-Connect Interface
  Allows for rapid tool-less tip swapping with a simple quarter-turn click mechanism.
• Autonomous Operation
  Equipped with an internal battery and status LEDs for field use without requiring external equipment.
• Broadband Thresholds
  Configured with specific pass/fail criteria optimized for fiber service activation.
• Integrated Connectivity
  Includes Bluetooth and WiFi capabilities for software updates and data transfer.
• Storage Capacity
  Internal memory allows for storing up to 100 single-fiber measurement results.
• Ergonomic Build
  Features a comfortable grip, wrist strap hook, and robust protective housing.

Applications

• FTTH network deployment
• Service provider fiber activation
• High-density cabinet and panel inspection
• Corning OptiTap connector inspection

Package Contents

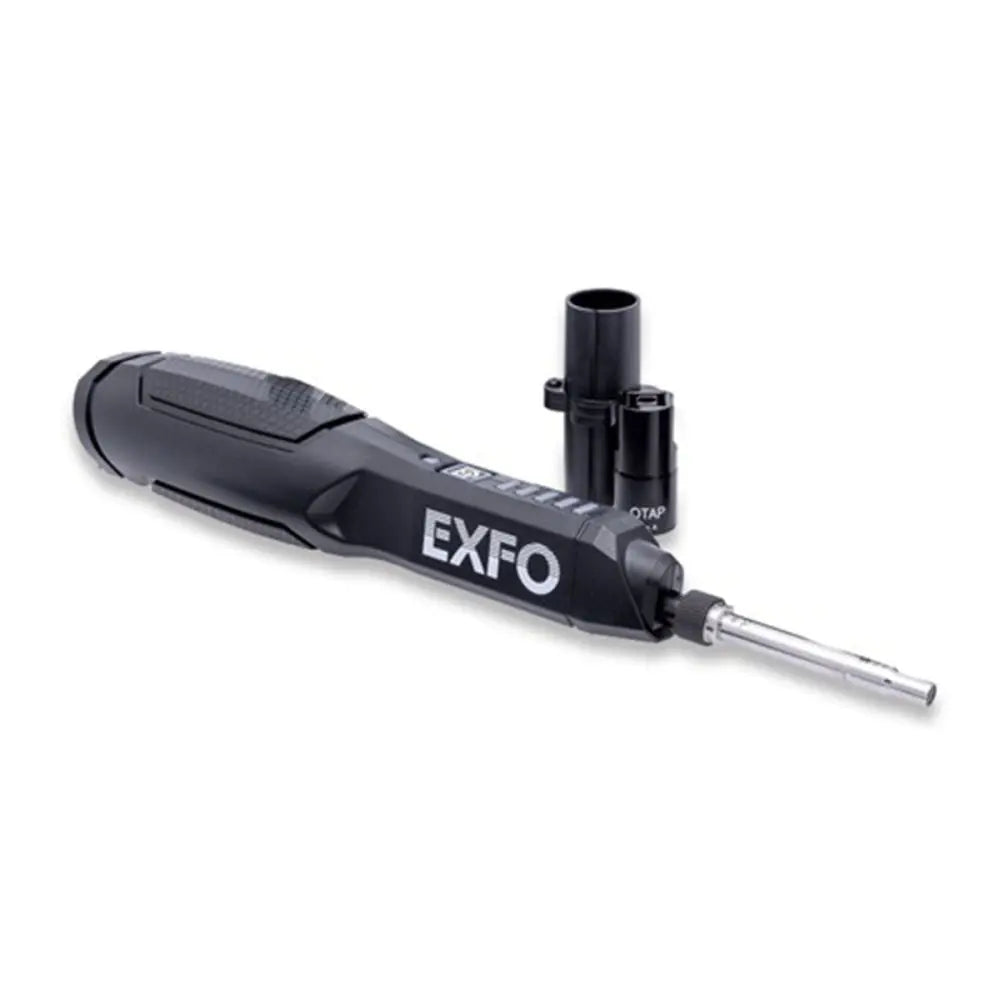

• FIP-200-A-OHC-L-CTIP-OTAP Connector Checker
• CTIP-OTAP Tip for Corning OptiTap
• USB-A to USB-C Cable (1m, USB 2.0)
• Protective Cap
• Cord Assembly

Technical Specifications

Frequently Asked Questions

Is the FIP-200 compatible with UPC connectors?
No, the FIP-200 is set up to work only with APC connectors.

How do I update the software on this device?
Software updates are managed via WiFi connectivity.

What is the primary benefit of the 'Long' reach model?
The 60mm long-reach head is designed to access connectors in dense panels where standard-length inspection tips cannot fit.

Does this unit require an external power supply or PC to operate?
No, the unit can be used autonomously using its internal battery.

How fast is the inspection process?
The device provides an automated pass/fail assessment in approximately 7 seconds.
