Overview

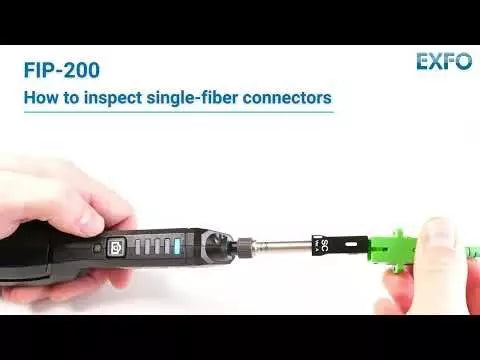

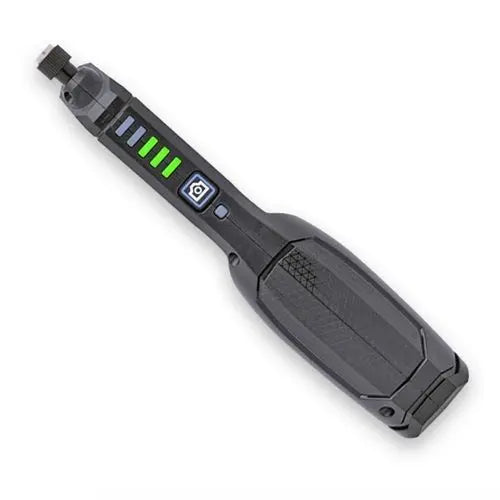

The EXFO FIP-200-A-OHC-SC is a specialized fiber inspection tool featuring a short-reach optical head designed for the inspection of SC connector end-faces. Engineered for Fiber-to-the-home (FTTH) deployments and service activation, this compact device simplifies field testing with an automated assessment process that determines connector cleanliness in just seven seconds.
Equipped with a dual-core CPU and single-button operation, the FIP-200 provides pass/fail thresholds specifically calibrated for broadband activation requirements. The unit features built-in Bluetooth and WiFi connectivity, a dedicated battery status LED, and local storage capacity for 100 single-fiber measurements. This portable tester is designed for field use, offering an ergonomic hand grip and a USB-C charging interface.
Key Features
-
Automated Assessment
Delivers quick pass/fail results in 7 seconds to increase field productivity. -
Short-Reach Optical Head
Specifically configured for efficient inspection of SC connectors. -
Broadband Calibration
Includes pass/fail thresholds tailored for FTTH and broadband service activation. -
Local Data Storage
Stores up to 100 single-fiber measurement results on the device. -
Wireless Connectivity
Features built-in Bluetooth and WiFi for seamless integration and software updates. -
Ergonomic Field Design
Compact, handheld form factor with an ergonomic grip and integrated wrist strap hook. -
Visibility Indicators
Equipped with 5-bar LED indicators designed to be visible even in low-light environments. -
Standalone Operation
Functions as an autonomous unit without the requirement for a secondary mobile device.
Applications
- Fiber-to-the-Home (FTTH) network installation
- Broadband service activation
- Fiber optic connector end-face inspection
- Field maintenance of fiber networks
Package Contents
- EXFO FIP-200-A-OHC-SC Connector Checker
- USB-A to USB-C cable (1m, USB 2.0)
- Protective cap and cord assembly
Compatibility
Connector Types- SC (APC polish only)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | FIP-200-A-OHC-SC |
| Part Number | 880X109 |
| Connector Compatibility | SC (APC Only) |
| Processing Time | 7 Seconds |
| Data Storage | 100 Single-Fiber Measurements |
| Connectivity | Bluetooth, WiFi, USB-C |
| Warranty | 1 Year |
Frequently Asked Questions
Is this unit compatible with UPC connectors?
No, the FIP-200-A-OHC-SC is configured specifically to work only with APC connectors.
Does this device require a smartphone to function?
No, the unit can be used autonomously as a standalone inspection device.
How are software updates performed?
Software updates are managed via the built-in WiFi connectivity.
What is the primary power source?
The device is recharged via a USB-C port.
How many tests can be saved on the device?
The internal memory allows for the local storage of 100 single-fiber measurements.
