Overview

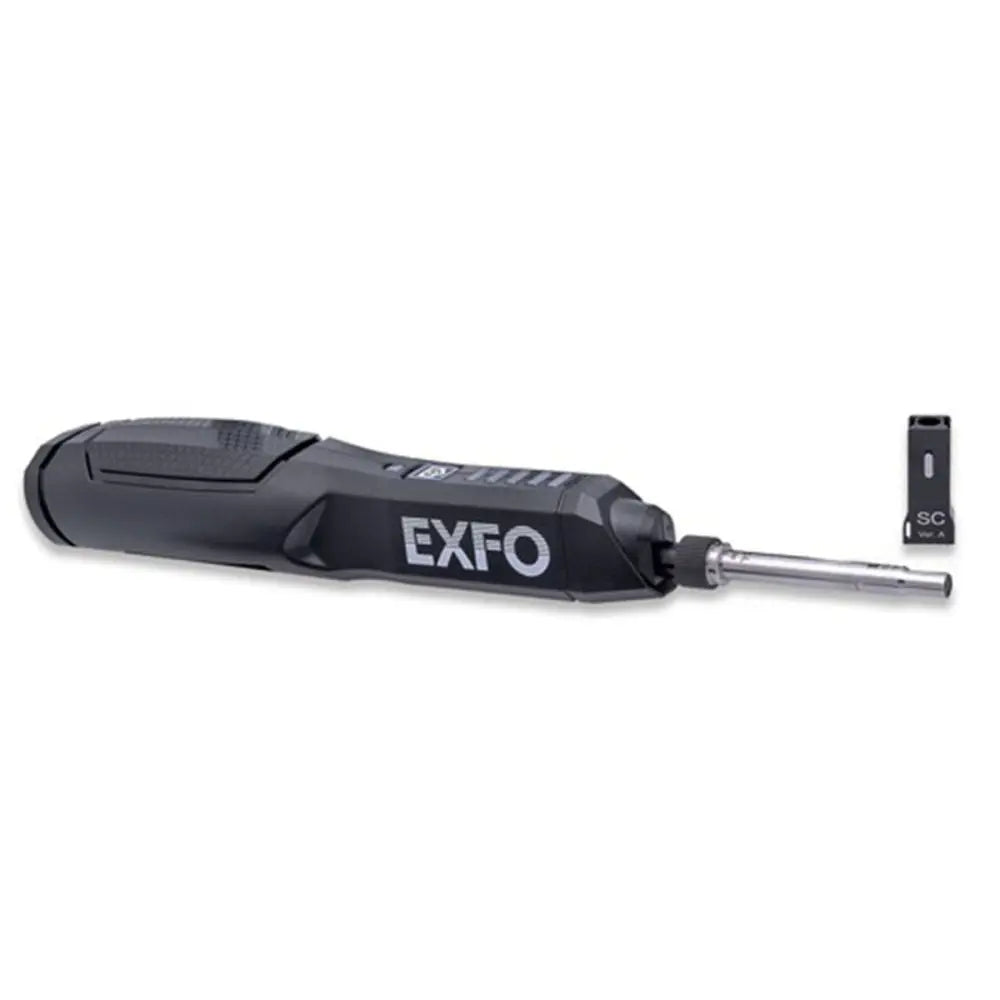

The EXFO FIP-200-KIT-1 is a specialized fiber inspection kit designed to simplify the verification of fiber end-face cleanliness. This kit centers on the FIP-200-A Connector Checker, which is optimized for field service technicians, particularly those working in Fiber-to-the-Home (FTTH) and service activation environments. The device utilizes a dual-core CPU for rapid automated pass/fail assessments, providing results in just 7 seconds.
Equipped with a long-reach optical head, this kit ensures clear access to connectors in high-density panels and crowded cabinets. The unit features a user-friendly quick-connect design, allowing for seamless transitions between different inspection tips with a simple quarter-turn. The tool is purpose-built for APC (Angled Physical Contact) connectors and integrates directly with the EXFO Exchange platform for efficient data management.
Key Features
-
Automated Assessment
Provides pass/fail results in 7 seconds using an internal processor, saving time during service activation. -
Long-Reach Design
Includes an OHC-L 60mm optical head to facilitate easy inspection in dense fiber distribution panels and cabinets. -
Quick-Connect Interface
Features a quarter-turn click design that allows technicians to switch inspection tips quickly without tools. -
APC Optimization
Specifically calibrated and configured for the inspection of APC connectors. -
Intuitive Interface

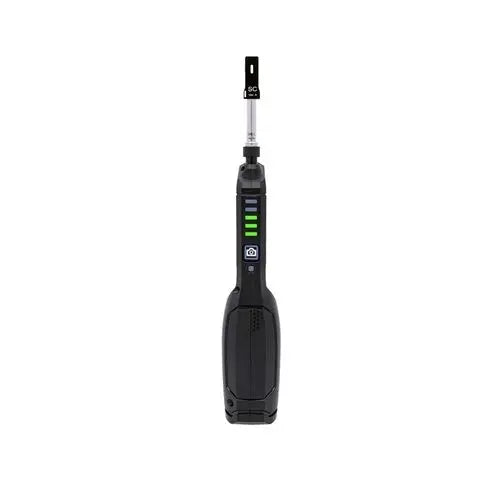

Utilizes 5-bar rating LEDs, battery status indicators, and a single-button operation to simplify the inspection process. -
Connectivity
Equipped with integrated Bluetooth and WiFi capabilities for reporting and data synchronization. -
Measurement Storage
Capable of storing up to 100 single-fiber measurement results locally.
Applications
- FTTH network installation and maintenance
- Broadband service activation
- Fiber optic connector inspection in high-density cabinets
- Field troubleshooting of fiber link performance
Package Contents
- FIP-200-A Connector Checker
- OHC-L long-reach optical head
- CTIP-SC inspection tip (for SC/APC connectors)
- Soft carrying case
- Power supply
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | FIP-200-KIT-1 |
| Connector Compatibility | SC/APC |
| Optical Head | OHC-L (60mm reach) |
| Assessment Time | 7 seconds |
| Storage Capacity | 100 single-fiber measurements |
| Connectivity | Bluetooth, WiFi, EXFO Exchange |
| Warranty | 1-year on FIP-200 |
Frequently Asked Questions
Is the FIP-200-KIT-1 compatible with UPC connectors?
No, the FIP-200-KIT-1 is specifically set up to work only with APC connectors.
Can I change the inspection tip easily?
Yes, the device utilizes a quick-connect, quarter-turn design that allows for rapid tip swapping.
Does the unit store my test results?
Yes, it supports the local storage of up to 100 single-fiber measurement results.
What is the purpose of the OHC-L head included in this kit?
The OHC-L is a 60mm long-reach optical head designed to provide easier access to connectors located in hard-to-reach or high-density panels.
How long does it take to get a pass/fail assessment?
The automated assessment process is designed to provide results in 7 seconds.
