Overview

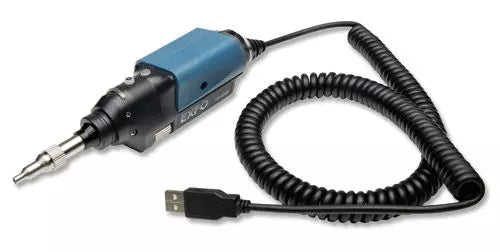

The EXFO FIP-410B-APC Fiber Inspection Probe is a professional-grade digital video inspection tool designed for network engineers and fiber technicians. It provides a reliable method for inspecting, analyzing, and documenting fiber connector end-faces to ensure optimal signal integrity in data centers and field environments.
Equipped with a 5-megapixel CMOS sensor, this probe offers triple magnification levels to allow for precise inspection of fiber end-faces for scratches, contamination, or defects. The unit supports automated image capture and analysis when used with the integrated ConnectorMax2 software, facilitating efficient reporting and network certification.
This inspection solution is highly versatile, maintaining compatibility with the FTB ecosystem, MaxTester 700B OTDR Series, MAX-FIP display, and standard PC or laptop hardware. It is built to operate in demanding field conditions, delivering accurate performance for both single-mode and multi-mode applications.
Key Features
-
High-Resolution Sensor
Features a 5-megapixel CMOS capturing device for clear, detailed image acquisition of fiber connector end-faces. -
Triple Magnification
Provides three distinct magnification levels, enabling comprehensive viewing of even the smallest defects. -
Automated Analysis
Compatible with ConnectorMax2 software for automated fiber connector pass/fail analysis and professional reporting. -
Wide Ecosystem Compatibility
Integrates seamlessly with the FTB ecosystem, MaxTester 700B OTDRs, MAX-FIP, and external computers. -
Ready-to-Use Kit
Supplied with essential APC tips, protective caps, and a convenient pouch for immediate deployment in the field. -
Connection Detection
Includes built-in fiber connection detection for streamlined workflow during testing.
Applications
- Data center fiber optic network certification
- Field inspection of fiber optic patch cords and bulkheads
- Preventative maintenance of telecommunications infrastructure
- End-face quality verification for network installations
Package Contents
- FIP-410B-APC Inspection Probe
- 2.5mm APC universal patchcord tip
- SC/APC tip for bulkhead adapter
- GP-2175 protective cap and cord assembly
- Plastic storage box
- Soft carrying pouch
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | FIP-410B-APC |
| Image Sensor | 5-megapixel CMOS |
| Magnification | Triple level |
| Connectivity | Compatible with FTB ecosystem, MaxTester 700B, MAX-FIP, and PC |
Frequently Asked Questions
What is included in the FIP-410B-APC kit?
The kit includes the inspection probe, a 2.5mm APC universal patchcord tip, an SC/APC bulkhead tip, a protective cap/cord assembly, a plastic box, and a soft carrying pouch.
Is this probe compatible with standard PCs?
Yes, the FIP-410B-APC is designed to work with PCs and laptops using the appropriate analysis software.
Does this unit support automated testing?
Yes, when paired with the ConnectorMax2 software, the unit supports automated fiber connector analysis and report generation.
Is this model TAA compliant?
No, this specific model is listed as non-TAA compliant.
What is the primary sensor resolution?
The probe features a high-performance 5-megapixel CMOS capturing device.
